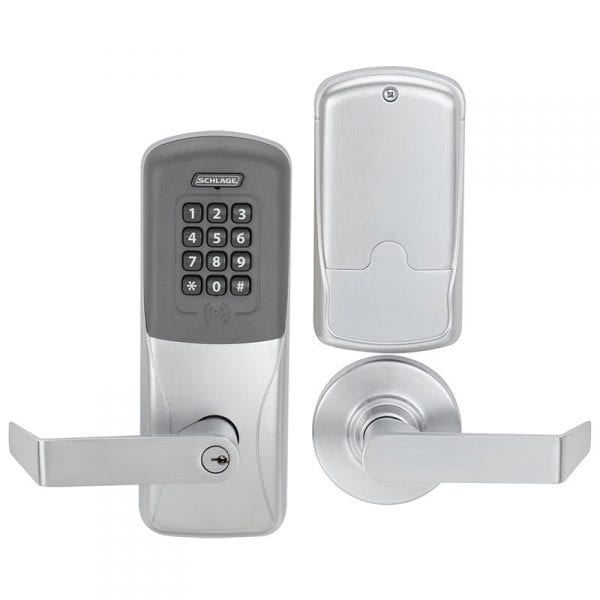

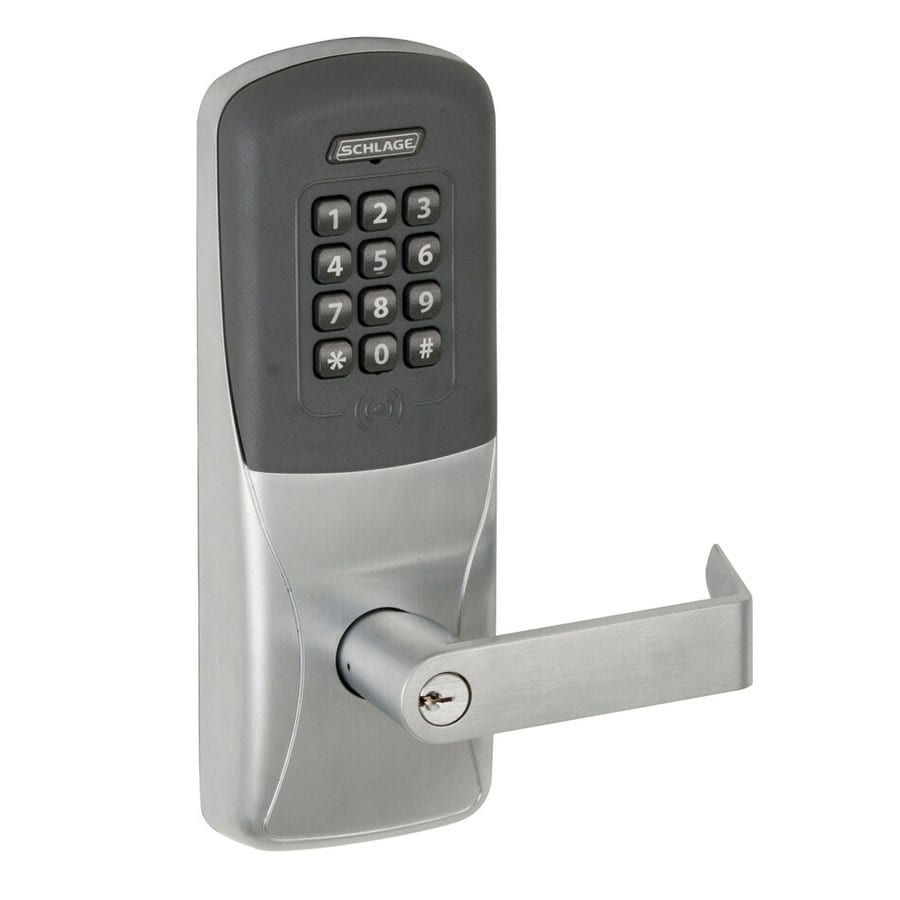

Schlage CO-200-CY-70-PRK-RHO Electronic Lock with Proximity Card Reader and Keypad, Storeroom Function

Usually Ships: 1-2 Business Days
  • Heavy Duty Grade-1, Standalone Electronic Lock
  • Computer or Manually Programmable
  • Proximity Reader, Keypad, and Mechanical Key Override

Available Options:

Clear

Schlage CO-200-CY-70-PRK-RHO Grade 1 Standalone Electronic Cylindrical Lock, Storeroom Function, Proximity Reader and Keypad, Rhodes Lever, With Schlage Standard Cylinder

The CO Series offers ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system.

The CO-200 steps up significantly in functionality from CO-100 keypad programmable locks. It can be manually or computer programmed with downloads occurring at the lock via handheld device. Credential use can include 3-6 digit PIN and proximity cards. More importantly, this lock offers up to 2000 users with audit capability to note the who, where, and when of building or room access.

Storeroom (70): Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured status.

  • 4 AA batteries included – up to 2-year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Stores up to 2,000 users with audit trail of up to 2,000 events (Depending on access control software capability)
  • UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze

Usage

Heavy Duty

Lock Function

Storeroom

Keyway

Schlage C Keyway, Schlage S123 Keyway

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

RHO (Rhodes)

Certifications

ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294

Handing

Non-Handed

Door Thickness

1-3/4"

Users

Up to 2000

Power

4 AA batteries

Battery Life

Up to 2 yrs with 4 AA batteries

Reader Type

Keypad, Proximity

Door Applications

Interior or Exterior Doors – ANSI/BHMA A156.25 full outdoor

Schlage_CO-Series_for_Cylindrical_Installation_Instructions
