Schlage CO-100-993R-70-KP-ATH Electronic Rim Exit Device Trim with Keypad, Athens Lever

Usually Ships: 20-30 Business Days
  • Standalone Electronic Rim Exit Device Trim
  • Compatible with Von Duprin, Falcon, Sargent, Yale, and more
  • Up to 500 Unique PIN Codes, Mechanical Key Override

Available Options:

Clear

Schlage CO-100-993R-70-KP-ATH Standalone Electronic Lock, Rim/Concealed Exit Device Trim, Storeroom Function, Keypad, Athens Style Lever, With Schlage Standard Cylinder

The CO Series offers 993 Exit Trim for use with compatible exit devices in retrofit or new construction applications. The 993 Exit Trim was designed to suite with CO Series cylindrical and mortise locksets to ensure that the facility remains aesthetically consistent. The CO Series 993 Exit Trim utilizes universal hardware to simplify installation of offline trim to a variety of exit devices, including rim style from Von Duprin and Falcon.

Storeroom Function (70): Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured status.

  • Exit device not included (sold separately)
  • 4 AA batteries included – up to 2 year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
  • UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified

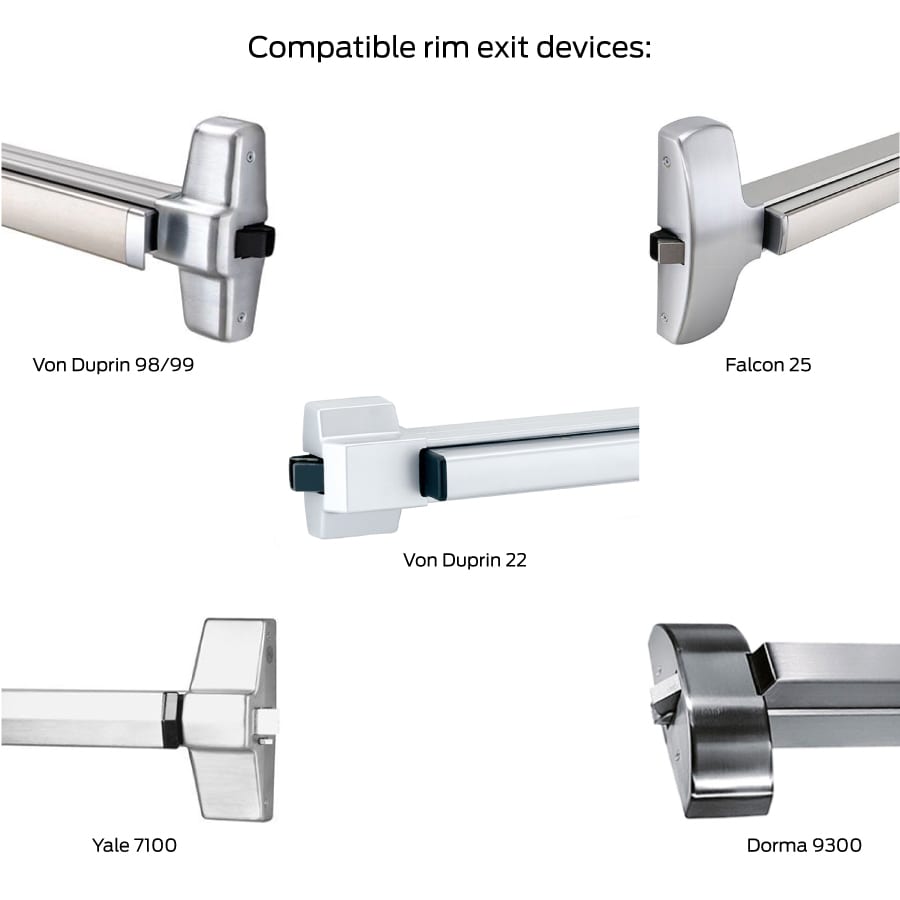

Device Combability:

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze

Usage

Heavy Duty

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway, Schlage S123 Keyway

Lock Function

Exit Device Trim

Certifications

ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294

Lever Design

ATH (Athens)

Handing

Non-Handed

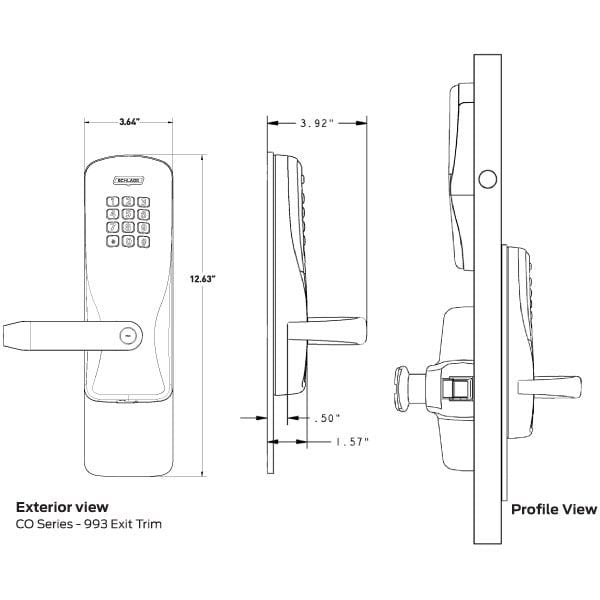

Door Thickness

1-3/4"

Fire Rating

UL Listed

Users

Up to 500

Power

4 AA batteries

Battery Life

Up to 2 yrs with 4 AA batteries

Schlage_CO-Series_for_Exit_Device_Installation_Instructions
