Product Overview

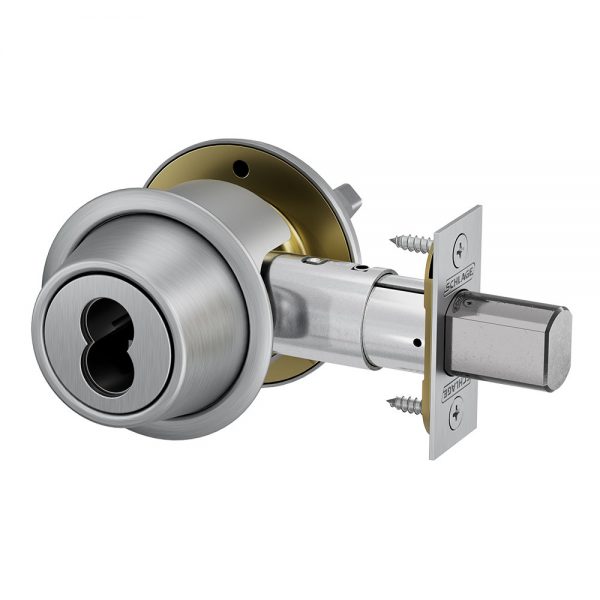

Schlage B563B Classroom Deadbolt, SFIC Prep, Less Core, Adjustable 2-3/8″ and 2-3/4″ Backset

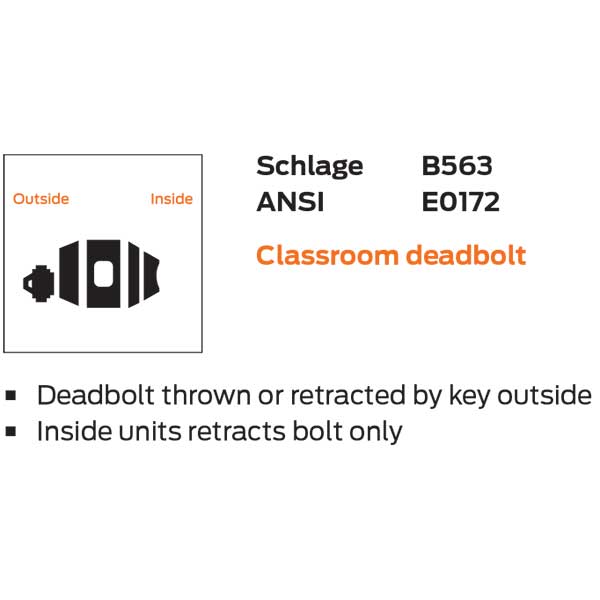

ANSI Function E0172: Deadbolt thrown only by key outside; retracted by key outside or thumbturn inside.
- SFIC (small format interchangeable core) core sold separately
- 2-3/8″ to 2-3/4″ Adjustable Backset (1-1/8″ x 2-1/4″ latch face)
- Quick, easy installation – Adjustable backset locks into place
- Anti-pry shield protects latch from attacks
- Metal dust box provides deep anchoring and added strength
- Primary or auxiliary locking for commercial buildings
- High security locking for residential buildings
- Can be suited with virtually all Schlage levers and knobs
Brand | |
---|---|
Finishes | 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome |
Deadbolt Type | Classroom |
Cylinder | Small Format Interchangeable Core (SFIC) Cylinder (Less Core) |
ANSI Function | E0172 |
ANSI/BHMA Standard | ANSI A156.36, Grade 2. When installed with SFIC cylinder, Grade 3. |
Usage | Medium Duty |
Bolt | 1" throw bolt, 1-1/8" x 2-1/4" square corner face plate |
Backset | 2-3/8" to 2-3/4" Adjustable |
Strike | 1-1/8” x 2-3/4“ square corner |
Fire Rating | None |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Door Thickness | 1-3/8" to 1-3/4" |
