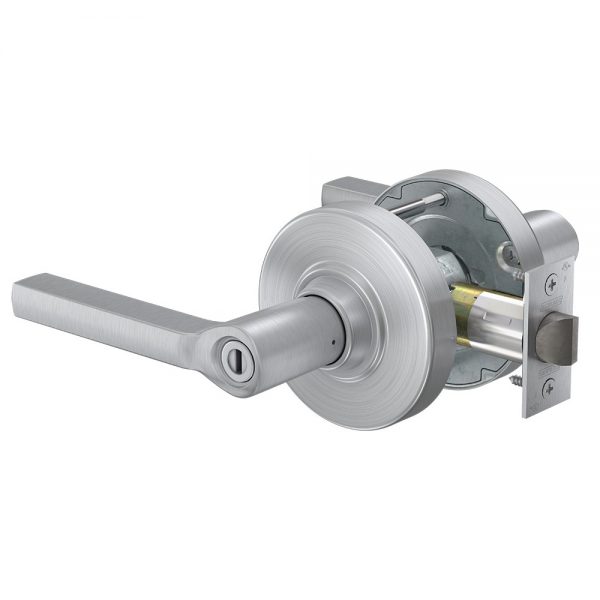

Schlage ALX40 LAT (Latitude) Privacy Lever Lock

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • Bath/Privacy function – push-button locking
  • Ideal for commercial restroom doors

Available Options:
Clear

Product Overview

Schlage ALX40 LAT Grade-2 Cylindrical Lever Lock, Bath/Bedroom Privacy Function, Latitude Lever

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

ANSI Function F76 – No key; emergency access coin turn outside; push-button inside; spring latch. Inside push button locks outside lever. Turn inside lever or close door to release button and prevent lock-out; outside coin turn provides emergency access. Inside lever is always free for immediate egress.

  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature – converts to ALXV40
  • Accommodates 1-3/8″ to 1-3/4″ door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Lock Function

Privacy
Lever Design

LAT (Latitude)
Backset

2-3/4" Standard, 2-3/8" Optional
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Strike

Standard: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation. Optional 2-3/4" x 1-1/8" T-Strike
Usage

Medium Duty
ANSI/BHMA Standard

Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Door Thickness

1-3/8" to 1-3/4"
Warranty

10 Year Limited
Schlage_ALX_Installation_Instructions Schlage_ALX_Series_Installation_Instructions_Spanish
