Schlage 20-001-C 1-1/4″ Mortise Cylinder with Straight Cam, C Keyway

Usually Ships: 1-2 Days
  • 1-1/4″ Standard Mortise Cylinder w/ Straight Cam (L583-477)
  • Includes 3/8″ Blocking Ring and 2 Cut Keys (C keyway)
  • For use with Exit Device Trim

Available Options:

  • Black
  • Bright Brass
  • Bright Chrome
  • Dark Bronze
  • Satin Brass
  • Satin Bronze
  • Satin Chrome
  • Stainless Steel

Schlage 20-001-C is a conventional (standard) 1-1/4” x straight cam mortise cylinder for use with exit device trim, cylinder dogging kits, alarm kits, alarmed hardware, mullions and mortise locks that require a 1-1/4″ mortise cylinder with a straight cam. Also known as Von Duprin 3215 cylinder.

Compatible with most exit device trim requiring mortise cylinders, including the following:

  • Von Duprin Trim: 230L, 230TP, 360L, 360L-NL
  • Falcon Trim: 510L, 510L-NL, 512TP, 512NL, 212L, 212L-NL

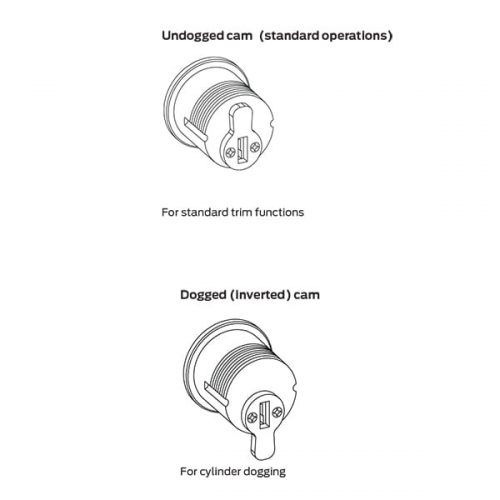

Invert the cam to use with cylinder dogging kits.



605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 630 Stainless Steel


Schlage C Keyway

Cylinder Type

Mortise Cylinder
