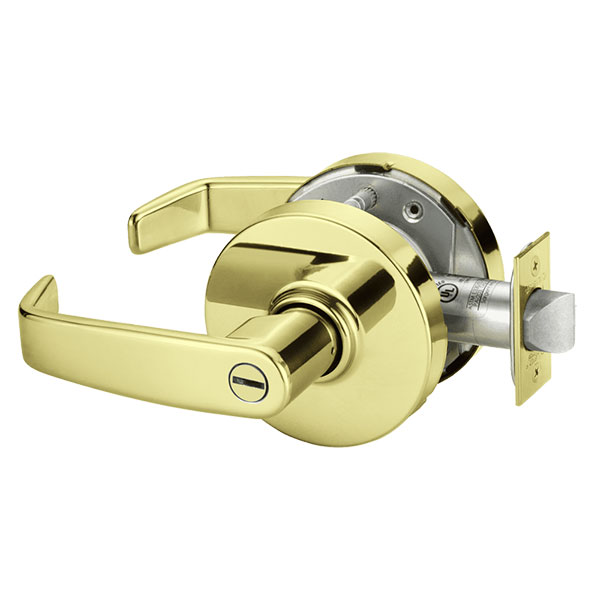

Sargent 28-7U65-LL Privacy Lever Lock

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Certified Grade 2
  • ADA Compliant, 3 Hour Fire-Rated
  • ANSI F76 Privacy Function

Available Options:

Clear

Product Overview

Sargent 28-7U65 Grade-2 Cylindrical Lock, Privacy Function, L Lever, L Rose

Best Overall Lock in the Grade 2 Class – The 7 Line is designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels, and government facilities.

  • Cycle Test exceeds ANSI/BHMA A156.2 Grade 2 requirements
  • Fits modified 161 door preps, installs in 1 minute or less
  • Internal through-bolts supply strength and stability without requiring additional door preparation
  • 28 Option: 4-7/8″ curved lip strike

ANSI F76 Privacy / Bathroom

  • Latch by either lever unless outside lever is locked by push button in inside lever
  • Turning inside lever or closing door releases button
  • Emergency button in outside lever unlocks with use of a blade screwdriver in outside lever and releases inside button

Applications

  • Standard duty commercial interior & exterior doors
  • Offices
  • Commercial interiors
  • Medical clinics
  • Government facilities
  • Public buildings

codes

Brand

Finishes

BSP Black Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome
Lock Function

Privacy
Usage

Medium Duty
ANSI/BHMA Standard

Certified A156.2 Series 4000, Grade 2
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

Fire Rated – UL10C – Positive Pressure
Lever Design

L
Rose Design

L
Backset

2-3/4"
Strike

808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"
Latch

Unguarded/Plain Latch, 1/2" throw – 1-1/8" x 2-1/4" face
Handing

Non-Handed
Door Thickness

1-3/4"
Minimum Stile Width

4-1/2"
Warranty

5 Year
