Sargent 28-70-11G04-LL T-Zone Storeroom or Closet Lever Lockset, SFIC Prep, Less Core

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • SFIC (Small Format Interchangeable Core) Prep (less core)
  • ANSI F86 Storeroom Function

Available Options:

Clear

Product Overview

Sargent 28-70-11G04-LL Grade-1 T-Zone Bored Lock, Storeroom or Closet Function, L Lever, L Rose, SFIC Prep, Less Core

The SARGENT 11 Line has a unique, T-Zone construction providing strength and durability for the most demanding applications such as schools and hospitals. This is accomplished by true interlocking between the lockbody and the latchbolt.

  • Reliable: no through bolts or surface screws to be installed. T-Zone construction prevents the lock from twisting
  • Flexible: utilizes one lock body for multiple functions, simplifying facility maintenance
  • Secure: torque-resistant construction enables lock to withstand tough environments

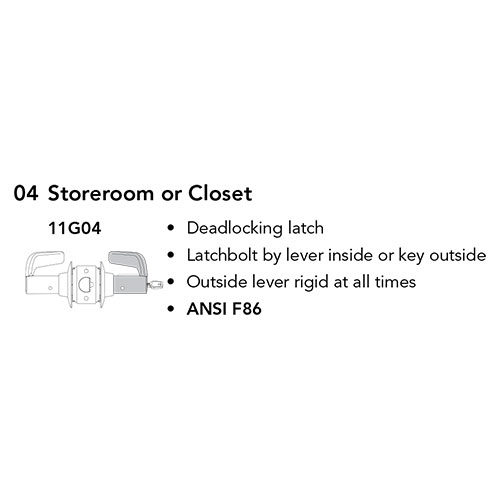

ANSI F86 Storeroom or Closet

  • Deadlocking latch
  • Latchbolt by lever inside or key outside
  • Outside lever rigid at all times

Hardware to accept 6- or 7-Pin SFIC permanent cores (ordered separately), disposable plastic core provided

Applications

  • High traffic areas – offices, public buildings, hospitals
  • High abuse areas – institutions, schools, retail

codes

Brand

Finishes

BSP Black Suede Powder Coat, US4 (606) Satin Brass, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome
Lock Function

Storeroom
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI A156.2 Series 4000 — Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

Fire Rated – UL10C – Positive Pressure
Cylinder

Hardware to accept 6- or 7-Pin SFIC permanent cores (ordered separately), disposable plastic core provided
Backset

2-3/4"
Lever Design

L
Rose Design

L
Strike

808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"
Latch

Stainless steel bolt 7/8" dia. x 1/2" throw
Handing

Non-Handed
Door Thickness

1-3/4" to 2"
Minimum Stile Width

4-1/2"
Warranty

10 Year Limited
Cylinder Format

Small Format Interchangeable Core (SFIC)
