Sargent 28-65U15-KL Passage Lever Set

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Certified Grade 2
  • ADA Compliant, 3 Hour Fire-Rated
  • ANSI F75 Passage Function

Available Options:

Clear

Sargent 28-65U15 Grade-2 Cylindrical Lock, Passage Function, L Lever, K Rose

Designed for increased usability, the 6500 Line standard duty key-in-lever lock exceeds ANSI/BHMA Grade 2 standards.

  • Exceeds ANSI/BHMA A156.2 Grade 2 requirements
  • 28 Option: 4-7/8″ curved lip strike

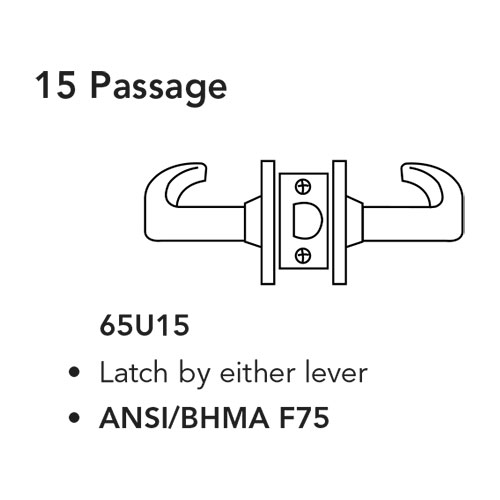

ANSI F75 Passage

  • Latch by either lever

Applications

  • Standard duty commercial doors
  • Offices
  • Public buildings

codes

Brand

Finishes

BSP Black Suede Powder Coat, US3 Bright Brass, US4 (606) Satin Brass, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome

Lock Function

Passage

Usage

Medium Duty

ANSI/BHMA Standard

Certified A156.2 Series 4000, Grade 2

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Fire Rated – UL10C – Positive Pressure

Lever Design

L

Rose Design

K

Backset

2-3/4"

Strike

808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"

Latch

Unguarded/Plain Latch, 1/2" throw – 1-1/8" x 2-1/4" face

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"
