Sargent 28-11G24-LL T-Zone Entrance or Office Lever Lockset

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ADA Compliant, 3 Hour Fire-Rated
  • ANSI F82 Entry/Office Function

Available Options:

Clear

Product Overview

Sargent 28-11G24-LL Grade-1 T-Zone Bored Lock, Entrance or Office Function, L Lever, L Rose

The SARGENT 11 Line has a unique, T-Zone construction providing strength and durability for the most demanding applications such as schools and hospitals. This is accomplished by true interlocking between the lockbody and the latchbolt.

  • Reliable: no through bolts or surface screws to be installed. T-Zone construction prevents the lock from twisting
  • Flexible: utilizes one lock body for multiple functions, simplifying facility maintenance
  • Secure: torque-resistant construction enables lock to withstand tough environments

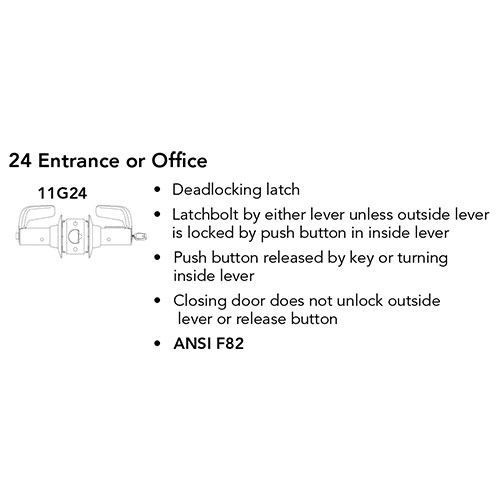

ANSI F82 Entrance or Office

  • Deadlocking latch
  • Latchbolt by either lever unless outside lever is locked by push button in inside lever
  • Push button released by key or turning inside lever
  • Closing door does not unlock outside lever or release button

Applications

  • High traffic areas – offices, public buildings, hospitals
  • High abuse areas – institutions, schools, retail

codes

Brand

Finishes

BSP Black Suede Powder Coat, US4 (606) Satin Brass, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome
Lock Function

Entry (Entrance), Office
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI A156.2 Series 4000 — Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

Fire Rated – UL10C – Positive Pressure
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Sargent LA Keyway
Backset

2-3/4"
Lever Design

L
Rose Design

L
Strike

808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"
Latch

Stainless steel bolt 7/8" dia. x 1/2" throw
Handing

Non-Handed
Door Thickness

1-3/4" to 2"
Minimum Stile Width

4-1/2"
Warranty

10 Year Limited
