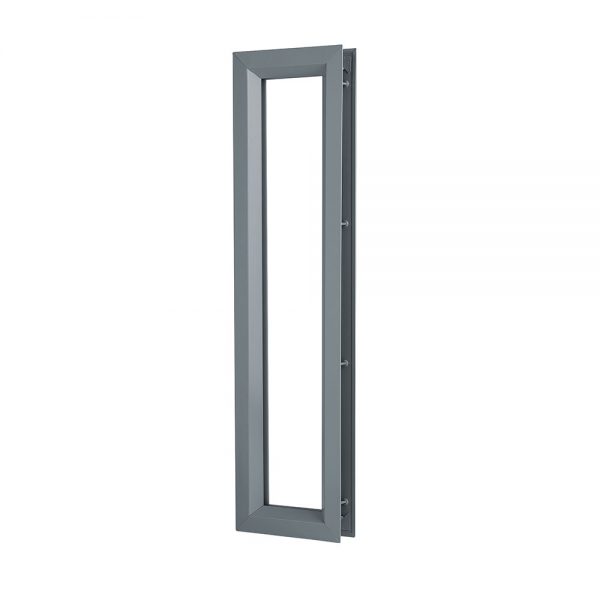

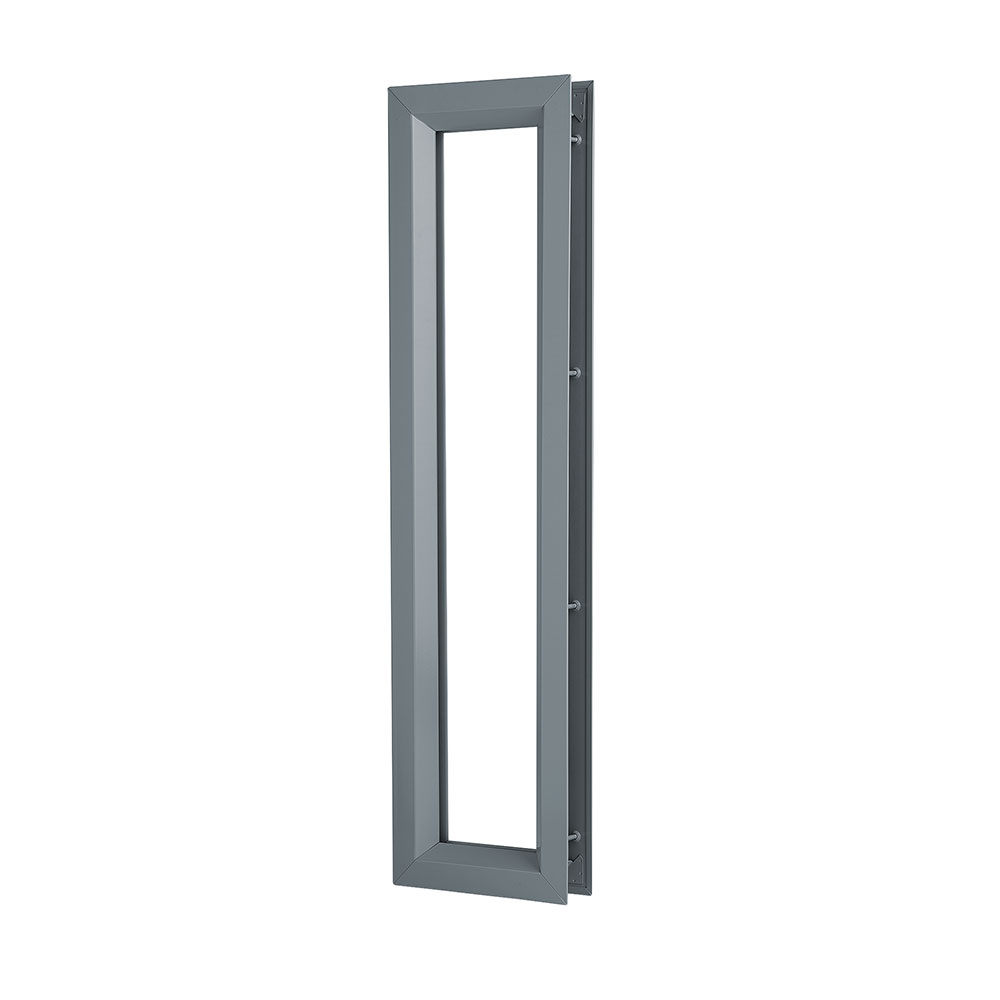

Rockwood LT-B1 Vision Lite Frame for 1/4″ Glass, 1-3/4″ Thick Door

Usually Ships: 3-5 Business Days
  • 20 gauge steel frame
  • For 1/4″ thick glass (sold separately)
  • For use with 1-3/4″ thick steel or wood doors

Available Options:
Clear

Product Overview

Rockwood LT-B1 Beveled lite kit with 3/8″ glazing pocket for 1/4″ glass – for 1-3/4″ thick doors

For use with glazing material with wood or metal doors. The lite kits install without drilling holes through the door for quick installation. The hemmed design is a flush-mounted assembly and is ideal for clean environments.

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Classified in accordance with UBC code standard 7-2 for positive pressure

made-in-usa

Brand

Finishes

Beige Powder Coat, BSP Black Suede Powder Coat, Dark Bronze Duranodic Powder Coat, Gray Primer Powder Coat, WSP White Suede Powder Coat
Frame Profile

Low
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1-3/4" Phillips head SMS
Glass Thickness

1/4"
Fire Rating

Classified in accordance with UBC code standard 7-2 for positive pressure, 90 Minute Fire Rating
Door Thickness

1-3/4"
