Pemko-RAMP1A
Pemko-RAMP1
Pemko-RAMP1A
Pemko-RAMP1

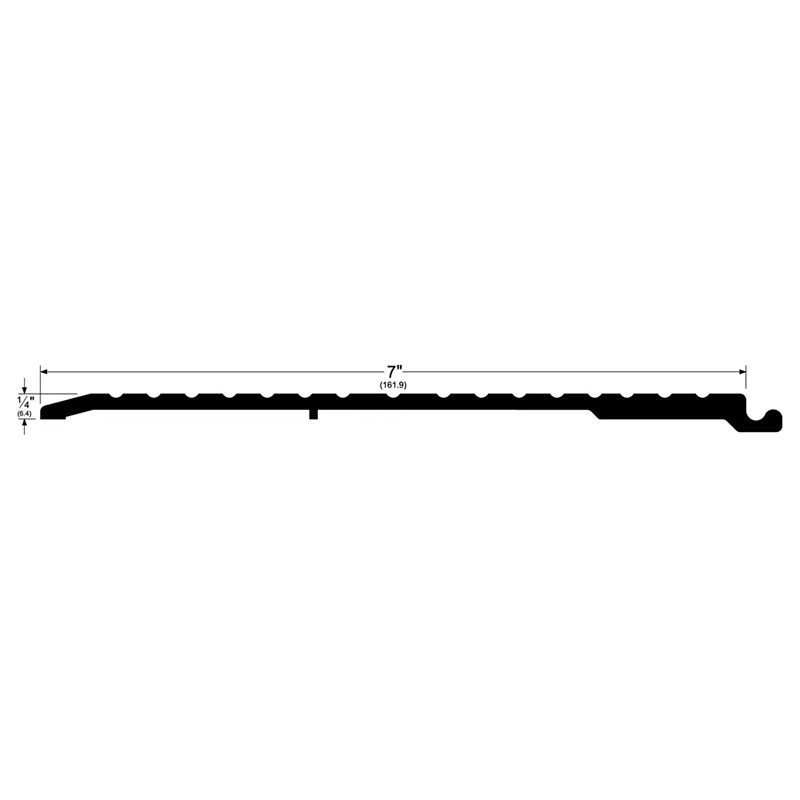

Pemko RAMP1_ Top Plate Component for Ramp Assembly – 7″ Wide x 1/4″ High

Usually Ships: 5-10 Business Days
  • 7″ top plate component for offset conditions
  • Part of the modular ramp components for creating custom ramps
  • Barrier-free, ADA compliant, ICC/ANSI A117.1

Available Options:
Clear

Product Overview

Pemko RAMP1_ Top Plate Component for Ramp Assembly – 7″ Wide x 1/4″ High

The RAMP1 Top Plate Component is a 7″ x 1/4″ plate used in ramp assemblies. It is part of the modular ramp components for creating custom ramps. This component is BHMA certified, ADA compliant, and UL 10C fire-rated.

  • 7″ top plate component for offset conditions
  • Allows integration of threshold with ramp
  • Allows for creating configurations without cost of custom extrusions
  • Eliminates need to weld joints
  • Conforms to uneven surfaces
  • Mill finish (optional Pemkote skid resistant finish)
  • Pemkote™ is highly recommended for all threshold assemblies, especially exterior conditions where moisture may be present. Pemkote Meets Requirements of: ASTM D 2047 & Federal Specifications P-F-430C.

Finishes

  • A – Mill Finish Aluminum Aluminum
  • AK – PemKote Skid Resistant Surfacing Aluminum

This product is fabricated to order and is not returnable or refundable.

Brand

Finishes

AK – Mill Finish Aluminum w/ PemKote, Mill Finish Aluminum
Length

36", 48", 60", 72", 84", 96"
Width

7"
Height

1/4"
Fire Rating

Fire rated-UL10c
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
