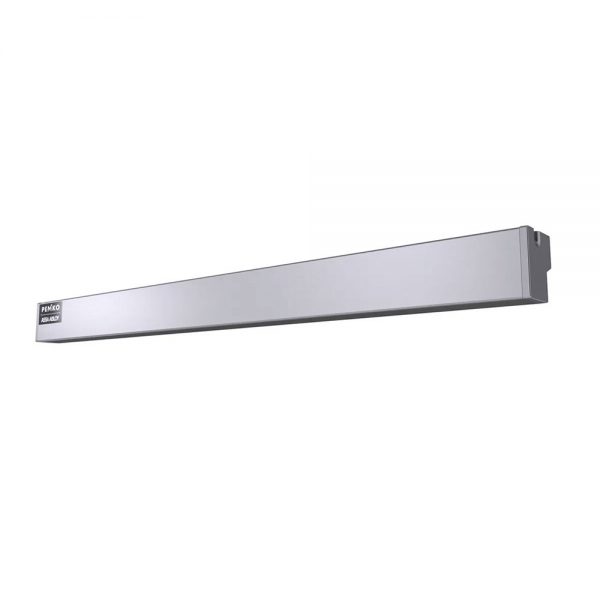

Pemko PemkoMatic PSLIDE Low Energy Automatic Sliding Door Operator

Usually Ships: 5-10 Business Days

For use with barn doors and pocket doors
Designed for smooth and silent door movement
Ideal for new installations as well as retrofitting

Available Options:

Finish

Door Activator

Clear

Quantity:

Pemko PemkoMatic PSLIDE Low Energy Automatic Sliding Door Operator

Effortless Access with Sliding Door Automation

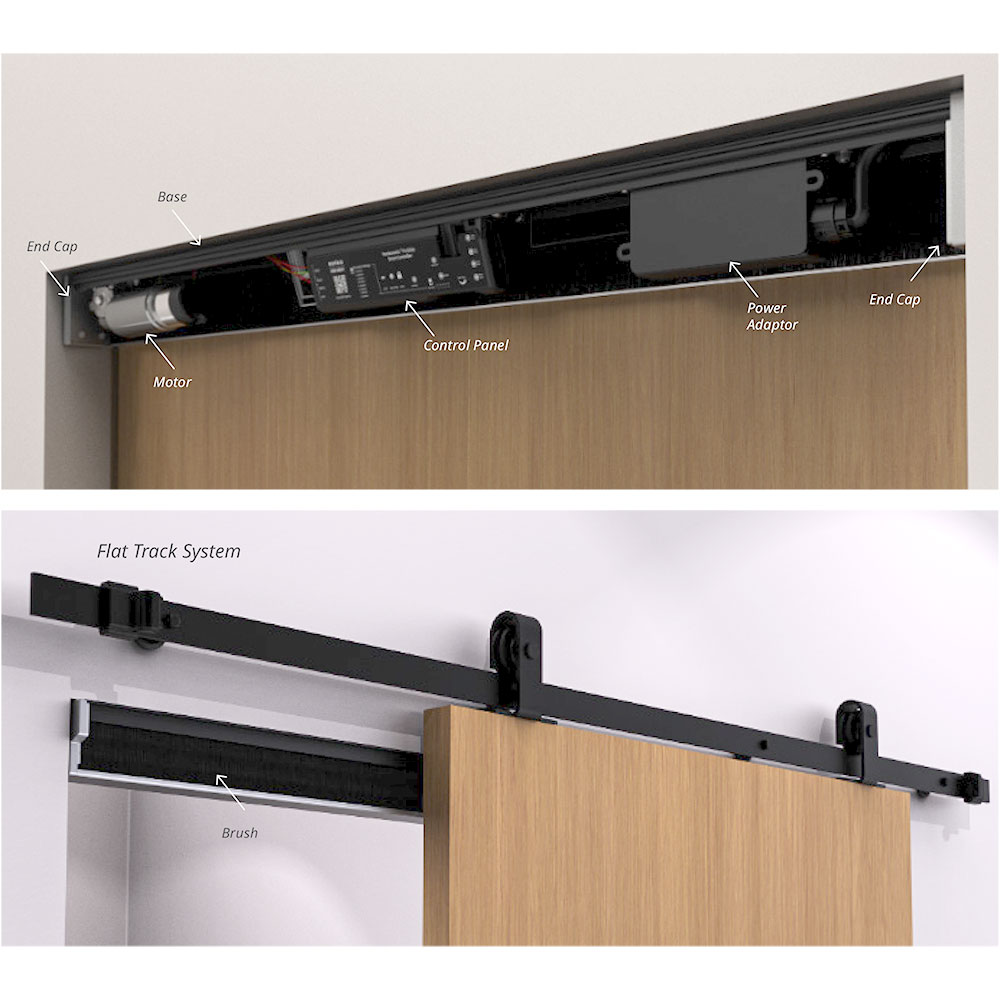

The PemkoMatic™ PSLIDE low energy automatic door operating system offers versatile electromechanical solutions for manual sliding doors, featuring convenient multi-access options including a wave-to-open sensor, push button, or keypad. Designed to fit seamlessly with both pocket and sliding doors, it is ideal for new installations as well as retrofitting existing openings. The system features a sleek cover, combining functionality with a clean, aesthetically pleasing design.

Features

Can be trimmed to fit doors smaller than 36″ wide for precise customization
Supports door widths up to the maximum door weight capacity
Two 20″ tracks; additional tracks are needed for doors wider than 40″
Optional adapter bracket available for non-header installations
Recess into the wall for full-opening width access
Field reversible (left-hand supplied)
Has been tested to industry standards for cycle testing: Tested over 1 million cycles (in AU) – Tested over 100,000 cycles (typical certification)
Sliding door types: barn door and pocket doors
Fasteners, allen key, and small screwdriver included

Benefits

Customizable Settings: Users can adjust the system according to their specific security and accessibility needs
Quiet Operation: Designed for smooth and silent door movement, ideal for residential and commercial settings
Durable Construction: Built to withstand regular use while maintaining functionality and security
User-Friendly Interface: Easy-to-use controls for operation and management of door modes
Multiple Access Options: Access the door using a wave sensor, a numeric keypad, or a push button
Open Time Adjustability: Can be adjusted, 0-24 seconds, via dial under the control panel
Customizable DIP Switches: Power level for lightweight or heavy doors, slam-shut functionality, beeper alerts

Specifications

ADA Compliant: Yes
Door Type: Barn Door, Pocket Door
EPD: No
Hold Open Time: 0-24 seconds
HPD: No
Maximum Door Weight: 330lbs.
Mounting Location: Face/Soffit Mount, Under Header
Overall Height: 3″
Overall Length: 36″
Overall Width: 2 1/2″
Track Length: 20″
Track Material: Plastic
Traffic Rating: Moderate to High Traffic
Voltage Input: 120v AC

Certifications

FCC Part 15 Compliant
Americans with Disabilities Act (ADA) Compliant
UL 325 Listed
Tested to ANSI A156.38, Low Energy Power Operated Sliding and Folding Doors

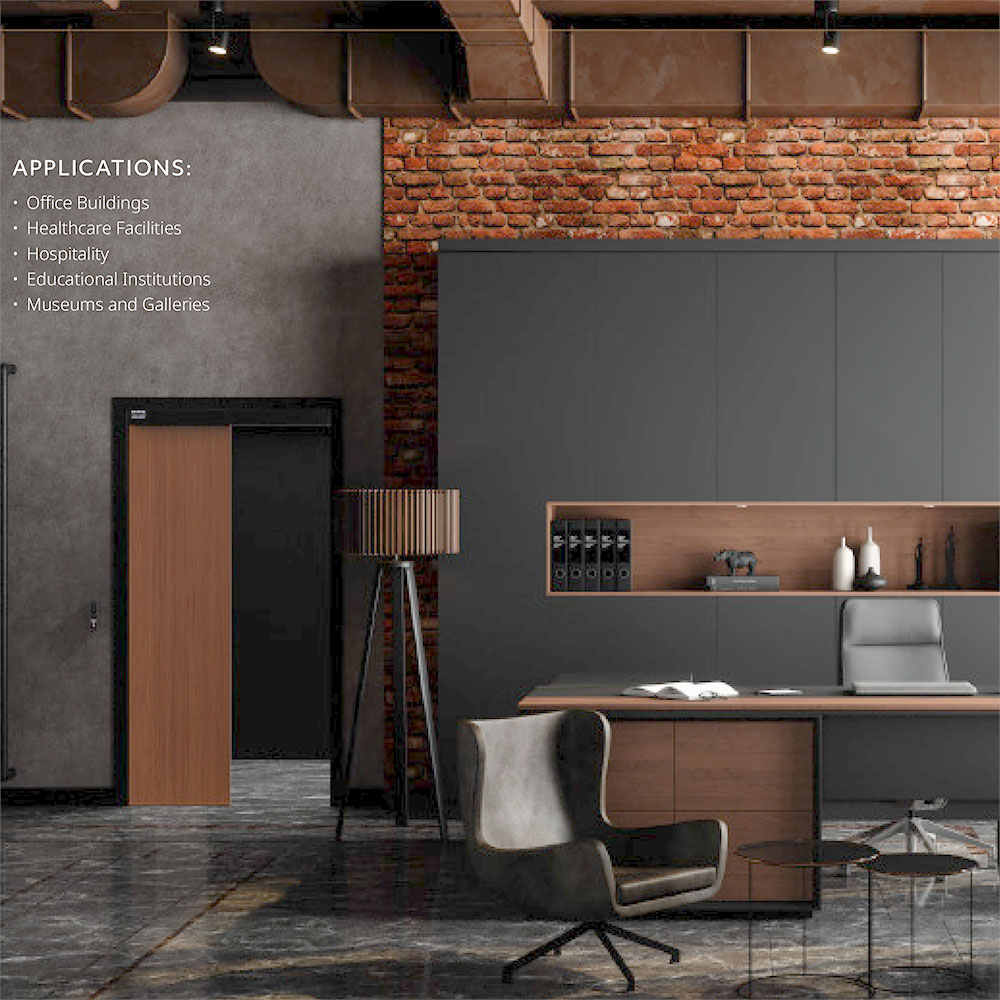

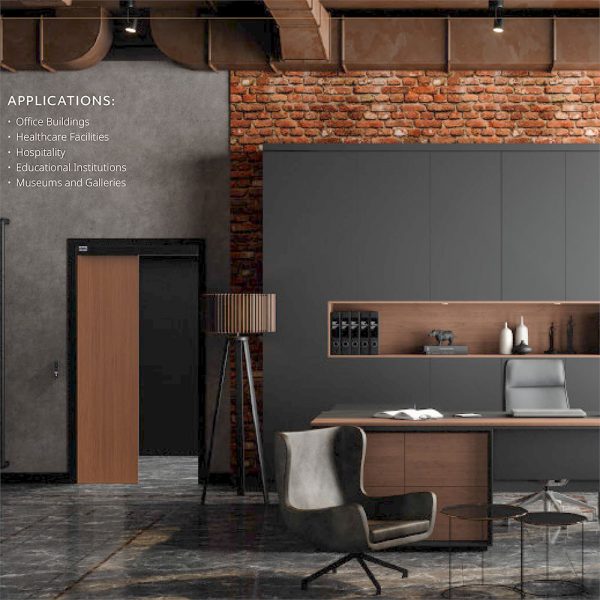

Applications

Office Buildings
Healthcare Facilities
Hospitality
Educational Institutions
Museums and Galleries

Brand	Pemko
Finishes	C – Clear Anodized Aluminum, BSP Black Suede Powder Coat, WSP White Suede Powder Coat
Usage	Heavy Duty
Handing	Field Reversible (Left-hand supplied)
Certifications	Tested to ANSI A156.38, Low Energy Power Operated Sliding and Folding Doors
UL Listing	UL 325 Listed
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Door Applications	Barn Door, Pocket Door
