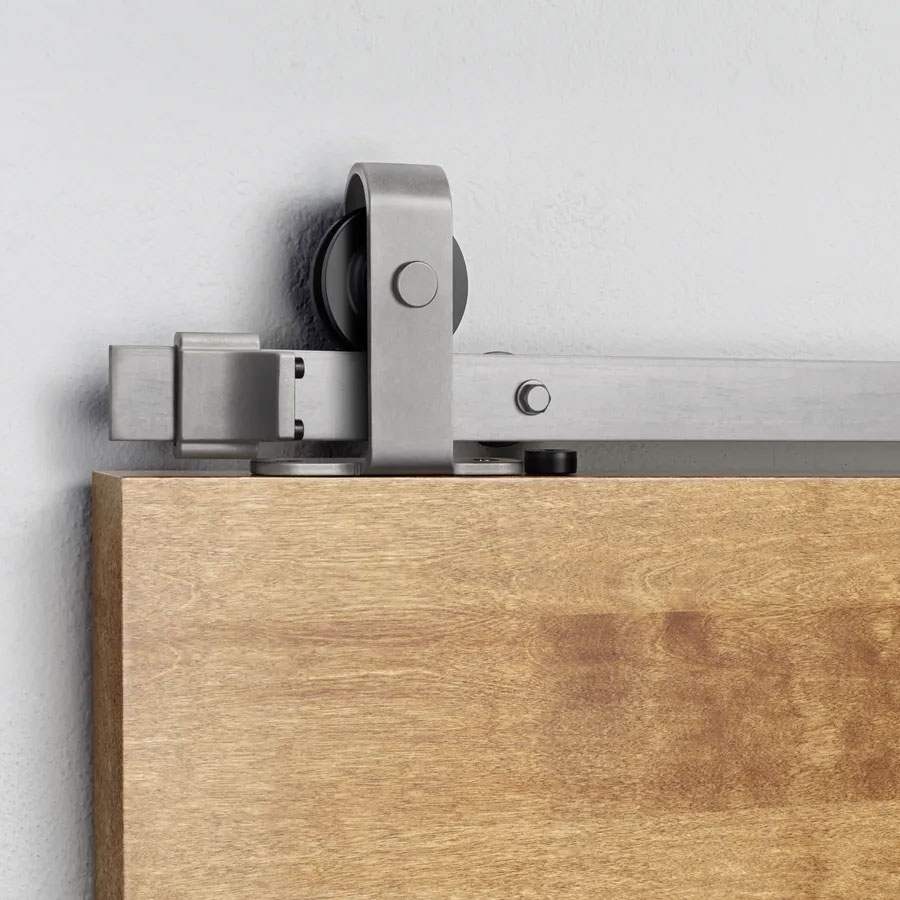

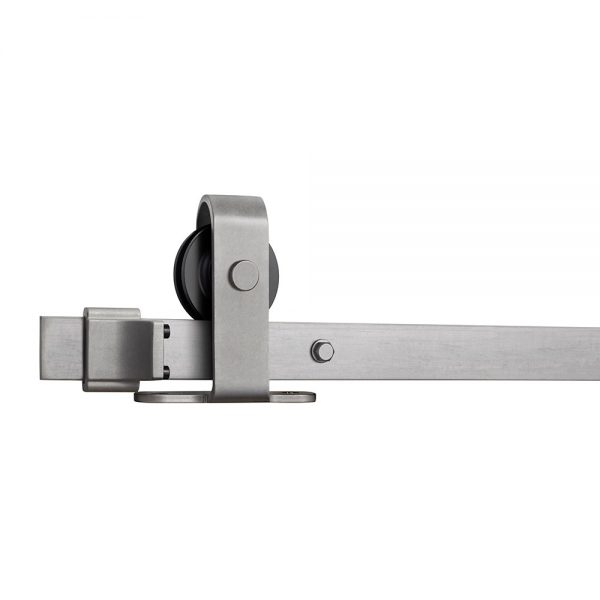

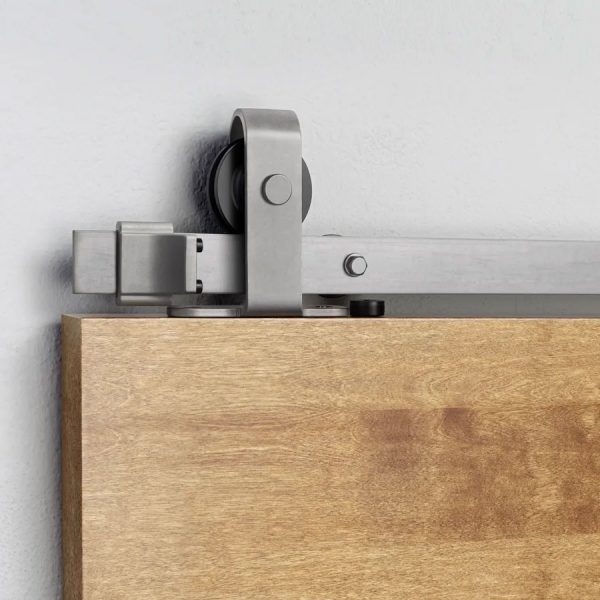

Pemko BLD-FT02 Flat Track Sliding Door Hardware System for Wood Doors

Usually Ships: 10-20 Days
  • For sliding wood panels up to 240 lbs.
  • Track and hangers made of steel
  • 6′ or 8′ track lengths

Available Options:

  • Black Suede
  • Industrial Steel

The Pemko Builders Series flat track sliding door hardware is a decorative sliding door system with a rustic look and feel.

  • For wood panels up to 240 lbs
  • Track and hangers made of steel
  • Solid Nylon wheel for smooth operation
  • Hangers equipped with anti-rise discs
  • 6′ or 8′ track lengths standard with custom lengths available
  • Finishes: Black Suede powder coat or Industrial Steel- zinc-coated steel
  • System meets performance requirements of ANSI/BHMA 156.14

BLD-FT-02 Kits Include:

  • 1 ea BLD-FT_/_ Steel Flat Track
  • 5 ea BLD-99_ Steel Track Brackets
  • 2 ea BLD-02-_ Steel Strap Mount Hangers
  • 2 ea BLD-77 Anti-Rise Discs
  • 1 ea 102N Mortised Type Nylon Guide
  • 2 ea BLD-11-_ Steel Track Stops Mounting Hardware


Black Suede, Industrial Steel

Track Length

72" (for 36" door), 96" (for 48" door)

ANSI/BHMA Standard

ANSI/BHMA 156.14
