Pemko K_FM_HD Full Mortise Kawneer Continuous Gear Hinge, Heavy Duty

Usually Ships: 5-10 Business Days
  • ANSI/BHMA A156.26 and UL certified
  • For Kawneer “Tuffline” series aluminum doors
  • Designed mainly for new door applications

Available Options:
Clear

Product Overview

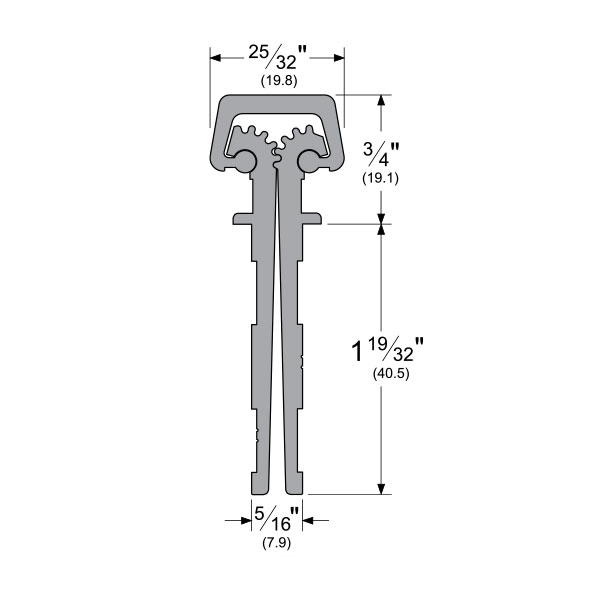

Pemko K_FM_HD Heavy-Duty Full Mortise Continuous Gear Hinge for Kawneer Doors

Heavy Duty Anodized Aluminum Kawneer Continuous Geared

  • Kawneer hinges are designed mainly for new door applications
  • Applied to conceal both leaves
  • Developed for the Kawneer “Tuffline” series of aluminum doors
  • Fasteners are No. 12-24 x 11/16″ #10 Head FHUC, Type C, threadforming, no tapping required
  • Length: 83″ or *95″
  • Finishes: C (Clear Anodized) and D (Dark Bronze Anodized)

codes-pemko-hinge
*excessive length surcharge applies to 95″ model

Models: KCFM83HD1, KCFM95HD1, KDFM83HD1, KDFM95HD1

Brand

Continuous Hinge Type

Full Mortise (Concealed)
Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum
Length

83" (for 7'0" door), 95" (for 8'0" door)
Material

Aluminum
Usage

Heavy Duty
Door Applications

1-3/4" Aluminum Doors
Warranty

10 Years
