Pemko 316_S Standard Perimeter Gasketing Weatherstrip with Silicone Insert

Pemko 316_S (PG) Standard Perimeter Gasketing with Silicone Insert

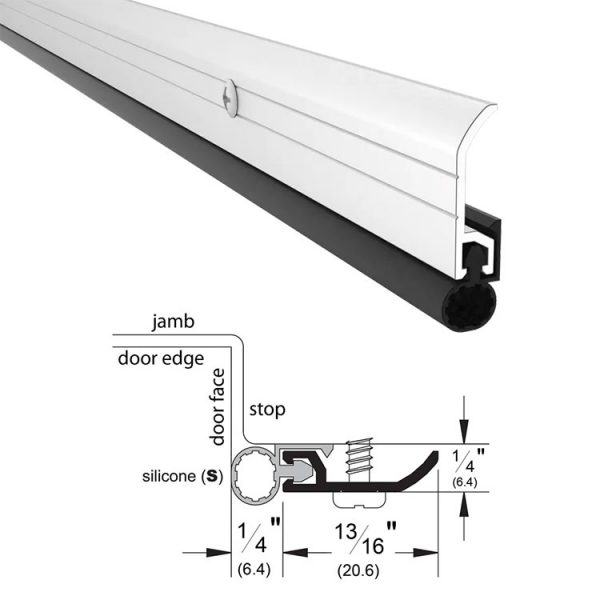

Designed to be applied to the “stop” perimeter of the door frame. Includes a silicone seal with aluminum framing. The silicone seal compresses against the door, to create a tight weatherproof seal.

Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.

Rigid jamb weatherstrip is shown mounted on openings with 1/16″ gaps; however, each weatherstrip can seal gaps up to the depth of its seal.

• This perimeter gasketing is supplied with a Silicone (“S”) insert
• Stainless steel fasteners are standard
• Available Sizes: 36″ x 84″ Set, *36″ x 96″ Set, 48″ x 84″ Set, 72″ x 84″ Set, *72″ x 96″ Set, and *96″ Single Piece
• Full-Length; Field-Cut to Size

*excessive length shipping fee applies

Finishes

• 316AS: A – Mill Finish Aluminum Aluminum with Silicone insert
• 316BSPS: BSP – Black Suede Powder Coat Aluminum with Silicone insert
• 316DS: D – Dark Bronze Anodized Aluminum with Silicone insert
• 316WSPS: WSP – White Suede Powder Coat Aluminum with Silicone insert

Ratings

•  Air Infiltration Tested
•  BHMA Certified
•  Smoke Tested – UL1784
•  Fire Rated – UL10C – Positive Pressure
•  Underwriters Laboratory 4L10
•  GREENGUARD Gold Certified
