Pemko-297AV

Pemko 297_V (PG) Standard Perimeter Gasketing Weatherstrip with Eco-V Vinyl Insert

Usually Ships: 10-15 Business Days
  • Use on door frames to seal top and sides of door
  • Seals against smoke, fire, air, and weather
  • #6 x 5/8″ Pan head sheet metal screws furnished

Available Options:
Clear

Product Overview

Pemko 297_V (PG) Standard Perimeter Gasketing with Eco-V Insert

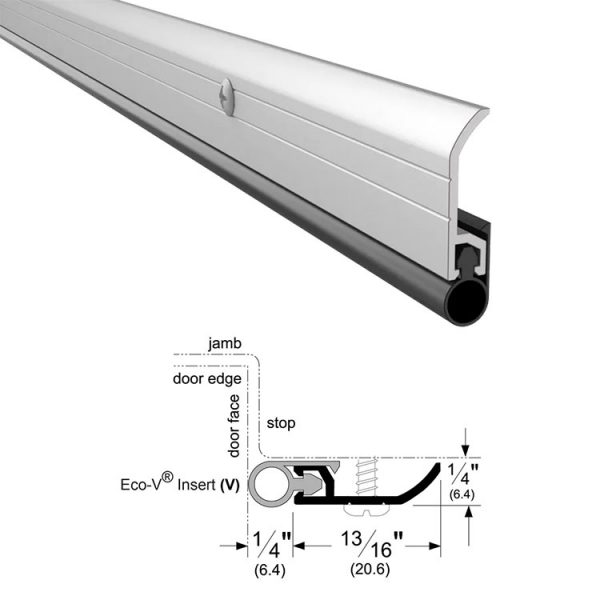

Designed to be applied to the “stop” perimeter of the door frame. Includes a vinyl seal with aluminum framing. The vinyl seal compresses against the door, to create a tight weatherproof seal.

Rigid jamp weatherstrip is shown mounted on openings with 1/16″ gaps; however, each weatherstrip can seal gaps up to the depth of its seal.

  • This perimeter gasketing is supplied with a Eco-V (“V”) insert
  • Stainless steel fasteners are standard
  • Available Sizes: 36″ x 84″ Set, *36″ x 96″ Set, 72″ x 84″ Set, *72″ x 96″ Set, *96″ x 96 Set, and *96″ Single Piece
  • Full-Length; Field-Cut to Size

*excessive length shipping fee applies

Finishes

  • 297AV: A – Mill Finish Aluminum Aluminum
  • 297BSPV: BSP – Black Suede Powder Coat Aluminum
  • 297DV: D – Dark Bronze Anodized Aluminum

Ratings

  •  Air Infiltration Tested
  •  BHMA Certified
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat
Size

36" x 84", 36" x 96", 72" x 84", 72" x 96", 96" x 96", 96"
Fire Rating

Fire Rated – UL10C – Positive Pressure
Gasket Type

Screw-on
Insert/Seal Type

Vinyl
