Product Overview
Pemko 296_R Standard Perimeter Gasketing with Sponge Neoprene Insert

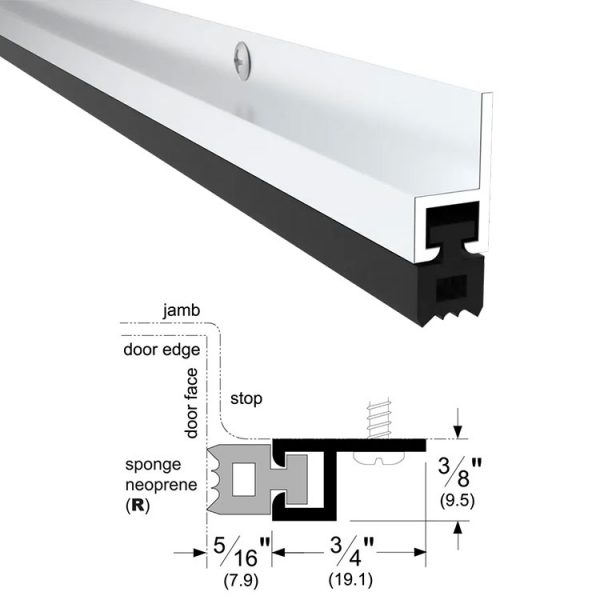

Designed to be applied to the “stop” perimeter of the door frame. Includes a Sponge Neoprene seal with aluminum framing. The Sponge Neoprene seal compresses against the door, to create a tight weatherproof seal.
Rigid jamp weatherstrip is shown mounted on openings with 1/16″ gaps; however, each weatherstrip can seal gaps up to the depth of its seal.
- This perimeter gasketing is supplied with a Sponge Neoprene (“R”) insert
- Stainless steel fasteners are standard
- Available Sizes: 36″ x 84″ Set, *36″ x 96″ Set, 72″ x 84″ Set, *72″ x 96″ Set, *96″ x 96 Set, and *96″ Single Piece
- Full-Length; Field-Cut to Size
*excessive length shipping fee applies
Finishes
- 296CR: C – Clear Anodized Aluminum
- 296BSPR: BSP – Black Suede Powder Coat Aluminum
- 296DR: D – Dark Bronze Anodized Aluminum
Ratings
- Air Infiltration Tested
- BHMA Certified
- Smoke Tested – UL1784
- Fire Rated – UL10C – Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
Brand | |
---|---|
Finishes | C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |
Size | 36" x 84", 36" x 96", 72" x 84", 72" x 96", 96" x 96", 96" |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
Gasket Type | Screw-on |
Insert/Seal Type | Neoprene or EPDM |
