Pemko 280_SWTKIT Side Wall Track (SWT) Sliding Door System with Angled Fascia

Usually Ships: 5-10 Business Days

For new construction or retrofit
Supports up to 200 lbs. per door
Mill finished track, clear anodized fascia

Available Options:

Finish

Track Length

Clear

Quantity:

Pemko 280_SWTKIT Side Wall Track System with Angled Fascia

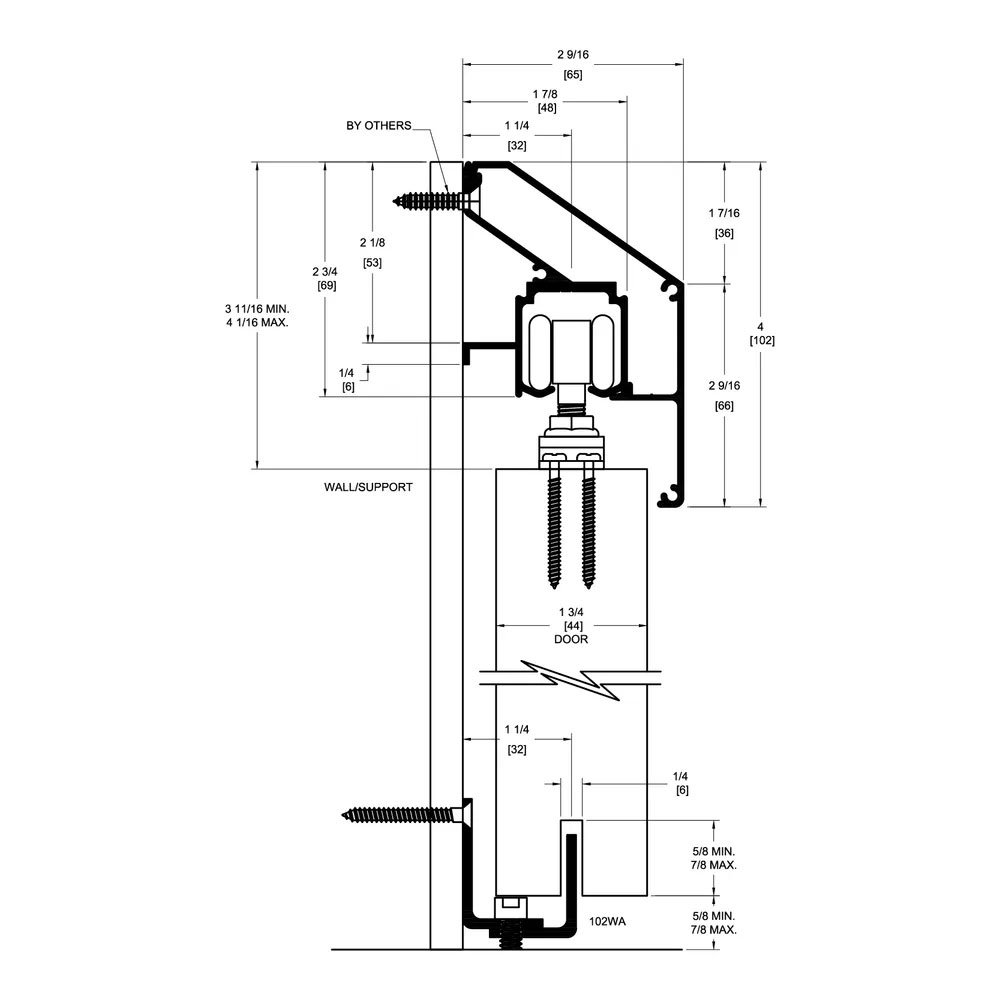

The 280 Side Wall Track (SWT) System features an angled fascia as well as a unique mounting bracket that is extruded with the track. This side wall mounted system can support single or bi-parting wood panels up to 200 lbs.

Transform your space – and your décor – with sliding door hardware from ASSA ABLOY. Add style where space is limited or keep doors concealed to preserve clean lines and open-air appeal. The Pemko Side Wall Track System has a unique mounting bracket that is extruded with the track. An innovative wall-mounted bottom guide assembly allows carpet to be replaced without removing the door.

Unique mounting bracket extruded into track
Supports up to 200 lbs. per door
Quick, easy attachment
New construction or retrofit
280-SWTKIT/6 (for 36″ door)
280-SWTKIT/8 (for 48″ door)

280_SWT Kits Include:

1ea 280_SWT Aluminum Track
1ea 280_-SWF Aluminum Fascia
1ea K28_-SWEP Pair of End Plates
2ea H222R1 Hangers
2ea TELS-14KIT In Track Stops
1ea 102N White Nylon Mortise Guide
1ea 102WA Wall Mounted Mortise Guide
1ea Adjusting Wrench

Brand	Pemko
Finishes	C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum
Track Length	72" (for 36" door), 96" (for 48" door)
Door Weight	Up to 200 Pounds
