Pemko 222_V Door Bottom Shoe for Hollow Metal Doors with Inverted Channel

Usually Ships: 1-2 Days
  • 36″ or 48″- w/ Eco-V Vinyl Insert
  • Fire-Rated and Smoke Tested
  • Air Infiltration Tested

Available Options:

  • Aluminum
  • Dark Bronze
Clear

This door shoe is supplied with a Eco-V® (“V”) insert – item number EV9

  • For Hollow Metal Doors with Inverted Bottom Channel

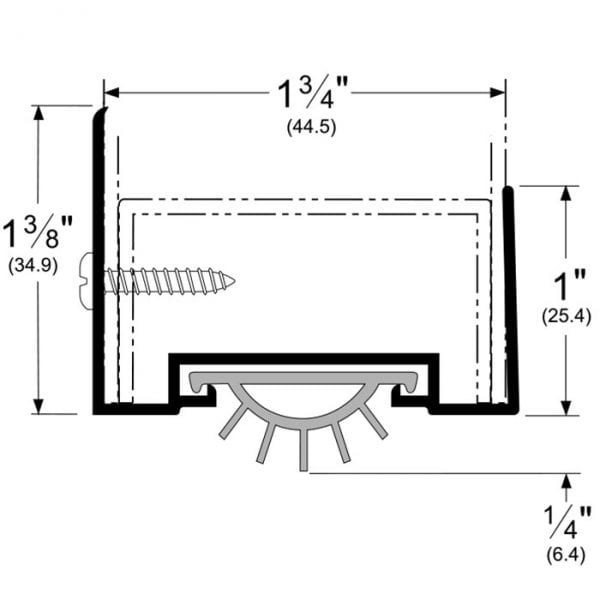

  • WIDTH: 1-3/4” (44.5 mm)
  • PROFILE HEIGHT 1: 1-3/8” (34.9 mm)
  • PROFILE HEIGHT 2: 1” (25.4 mm)
  • TOTAL HEIGHT WITH INSERT: 1-5/8” (41.3 mm)

222AV: A – Mill Finish Aluminum with Gray Eco-V insert
222DV: D – Dark Bronze Anodized Aluminum with Black Eco-V insert

Ratings

  •  Air Infiltration Tested
  •  Sound Tested – ASTM E90
  •  BHMA Certified
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C
  •  GREENGUARD Gold Certified

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum

Length

36", 48"

Fire Rating

Fire Rated – UL10C – Positive Pressure
