Pemko 215_V J-Shaped Door Shoe with Rain Drip and Eco-V Insert for 1-3/8″ Thick Door

Usually Ships: 1-2 Business Days
  • Ideal for deflecting rain away from bottom of 1-3/8″ door
  • Made of aluminum alloy for great protection
  • Fire-rated and smoke tested

Available Options:

Clear

Pemko 215_V J-Shaped Door Shoe with Rain Drip and Eco-V Insert

The 215 Series J-Shaped Door Shoe is equipped with a rain drip and an Eco-V™ (V) insert. It has slotted holes for easy adjustment. With a recommended compression of 1/16″, it provides protection for the bottom of the door, blocks unwanted airflow and light, and ensures privacy, while the rain drip model is particularly effective in deflecting rain away from the door.

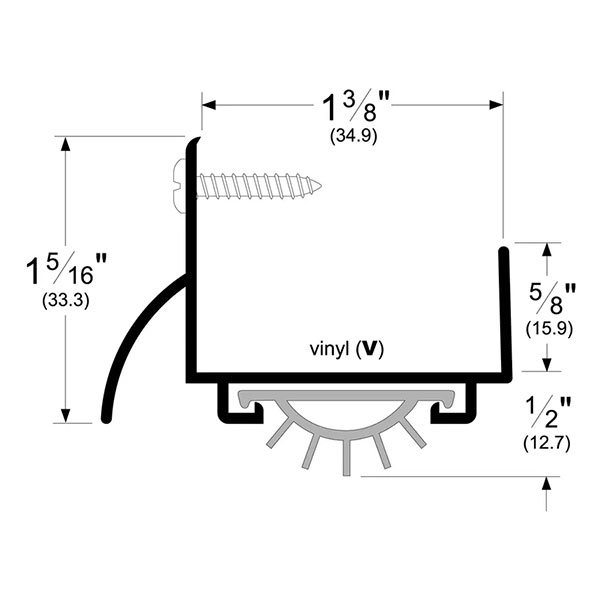

  • WIDTH: 1-3/8” (34.9 mm)
  • PROFILE HEIGHT 1: 1-5/16” (33.3 mm)
  • PROFILE HEIGHT 2: 5/8” (15.9 mm)
  • TOTAL HEIGHT WITH INSERT: Approx. 1-9/16” (39.7 mm)

Ratings

  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat, WSP White Suede Powder Coat

Length

36", 48"

Fire Rating

Fire Rated – UL10C – Positive Pressure
