Product Overview

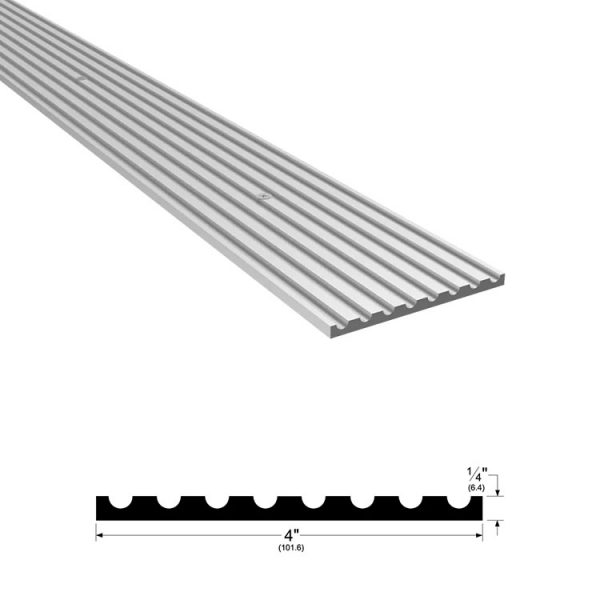

Pemko 192_ Floor Plate with Safety Tread 4″ W x 1/4″H
The 192 Floor Plate with Safety Tread is 4″ wide threshold plate designed to prevent tripping and provide a safe transition between different flooring levels. The floor plate is fire-rated, BHMA certified.
- Used as a transition
- Furnished undrilled
Certifications
- UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
- Americans with Disabilities Act (ADA) Compliant
- ANSI/BHMA A117.1
- ANSI/BHMA A156.21 Thresholds
Brand | |
---|---|
Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |
Length | 36", 48", 72", 96" |
Width | 4" |
Height | 1/4" |
ANSI/BHMA Standard | ANSI/BHMA A156.21 |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Fire Rating | Up to 3 Hours with metal doors; 90 minutes with wood doors |
