PDQ XGT199A Electrified Storeroom Lever Lock

Usually Ships: 2-3 Business Days

Extra Heavy-Duty, ANSI/BHMA A156.2 Grade 1 certified
Field-changeable from FAIL Secure to FAIL SAFE mode
Accepts both AC and DC input voltage

Available Options:

Finish

Lever Design

Clear

Quantity:

PDQ XGT199A Lever Lockset, Electrified Storeroom, Extra Heavy-Duty, Grade-1, 2-3/4″ Backset, ASA Strike, Schlage C Keyway

The XGT Series Extra Heavy Duty Cylindrical Lock offers premium quality and durability. Cycle tested to over 3 times the BHMA standards, the XGT lock is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock. This makes it a great choice for high-traffic areas where durability is most important. The XGT series is backed by a lifetime warranty and is assembled in Lancaster, PA.

Key outside retracts latchbolt. Latchbolt operated by lever from inside. Auxiliary latch deadlocks latchbolt. Fail safe–latchbolt operated by lever from outside unless electrically locked. Fail secure–latchbolt operated by lever from outside when electrically unlocked. Accepts 12VDC@.6A, 12VAC@.6A, 24VDC@.3A and 24VAC@.3A. Furnished with 6” wire leads.

Motor drive factory tested to over1.4 million cycles (1.4 times the ANSI/BHMA grade 1 std)

Built with a heavy-duty diecast chassis and a cast stainless steel lever spindle
13-gauge steel anti-rotation plate enhances stability
Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard)
Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard)

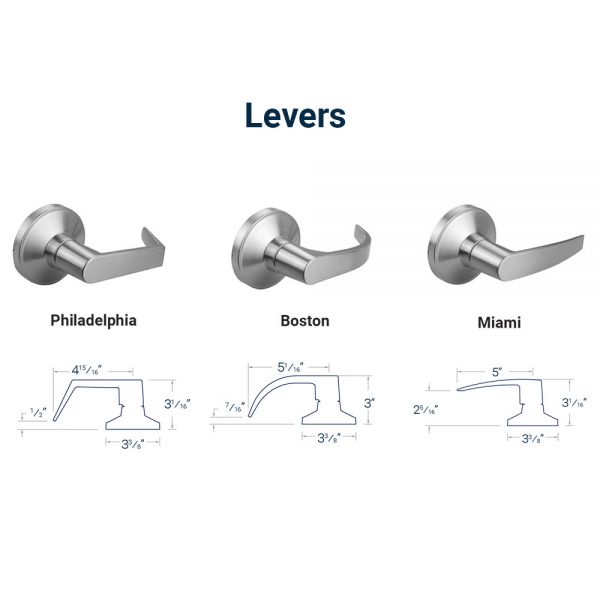

*Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
Certified to ANSI/BHMA A156.2 Grade 1 standards
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

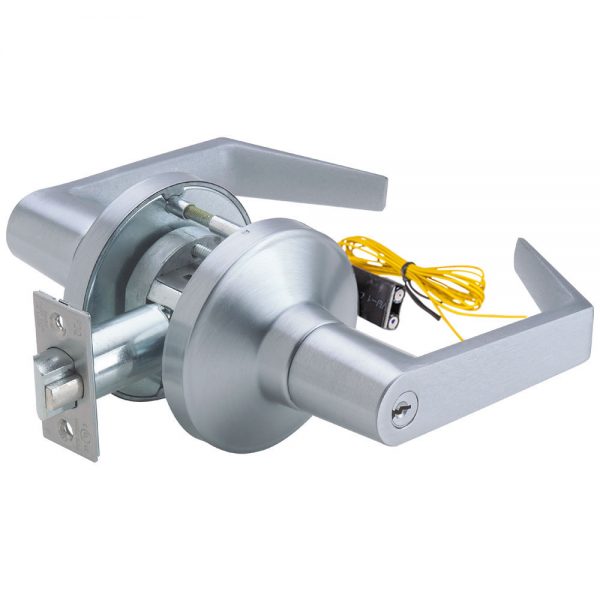

* PHL (Philadelphia) Lever Design Shown

Electrical Specifications

Input voltage: 12-24VDC or 12-24VAC.
• Max In-rush current: 1.0A.
• Standby current:
– 12VAC: 12mA.
– 24VAC: 10mA.
– 12VDC: 3mA.
– 24VDC: 5mA.
Note: Operating voltage at ± 10% of rated voltage.

Typical Applications

Computer Rooms
High Security Areas
Pharmacies
Stairwell Towers
Tenant Spaces

Brand	PDQ
Finishes	626 Satin Chrome
Lever Design	BSN (Boston), MIA (Miami), PHL (Philadelphia)
Rose Diameter	3-3/8” DIA Wrought
Usage	Heavy Duty
Lock Function	Electrified Storeroom
Cylinder & Keys	5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
ANSI/BHMA Standard	Certified to ANSI/BHMA A156.2, Grade 1
Fire Rating	UL listed for 3 hrs, for single doors up to 4’0” x 8’0
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing	Non Handed – Completely Reversible
Latch	9/16" throw – 1-1/8" x 2-1/4" face
Warranty	25-Years Mechanical / 2-Years Electronic
Buy American Act Compliance	Meets BAA – Buy American Act
