PDQ SD148 SFL Classroom Lever Lock, Small Format Interchangeable Core Prep

Usually Ships: 2-3 Business Days
  • ANSI/BHMA A156.2 Grade 2 certified
  • Small format interchangeable core prep (core sold separately)
  • ADA compliant, 3-hour fire-rated

Available Options:

Product Overview

PDQ SD148 Lever Lockset, Classroom Function, Grade-2, 2-3/4″ Backset, ASA Strike, SFL (SFIC) Small Format Interchangeable Core Prep

PDQ’s SD Series Grade 2 Cylindrical Lock has been value-engineered to meet your quality and cost expectations! Backed by a reassuring 5-year warranty, you can put your trust in the reliability and performance of this lock.

ANSI Function F84 – Latchbolt operated by lever from either side. Outside lever locked or unlocked by key from outside. Inside lever always operates latch. Deadlocking (guarded) latchbolt.

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

  • SFIC = Small Format Interchangeable Core (Core Sold Separately)
  • Heavy-gauge cold-rolled steel locking mechanism – Dichromate for corrosion resistance.
  • Removable thru-bolts

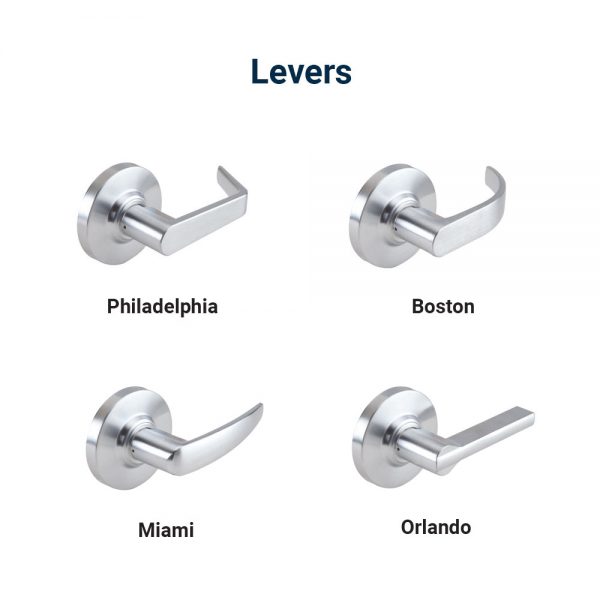

  • *4-Lever Styles: PHL (Philadelphia), BSN (Boston), MIA (Miami), ORL (Orlando)
  • *3-Finishes: 613E(US10BE), 622(US19), 626(US26D)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 2
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

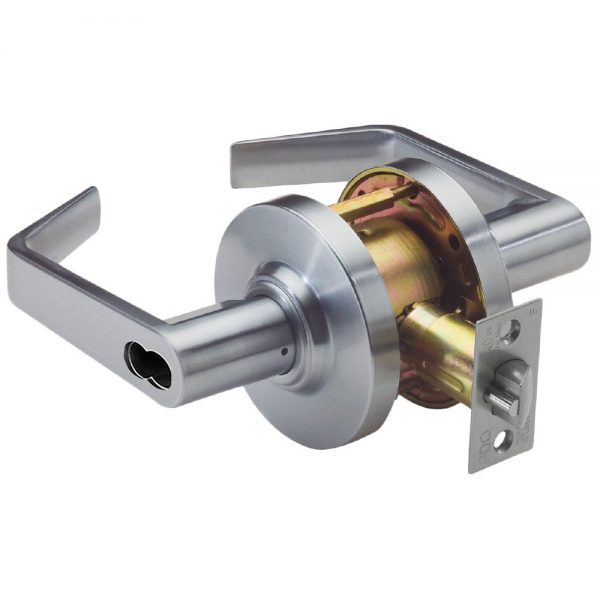

* PHL (Philadelphia) Lever Design in 626 Finish Shown

sd_certs

Brand

Finishes

613e Dark Oxidized Satin Bronze equivalent, 622 Flat Black, 626 Satin Chrome
Lever Design

BSN (Boston), MIA (Miami), ORL (Orlando), PHL (Philadelphia)
Rose Diameter

3-3/8” DIA Wrought
Usage

Medium Duty
Lock Function

Classroom
ANSI/BHMA Standard

Certified to ANSI/BHMA A156.2 Grade 2
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Backset

2-3/4"
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non Handed – Completely Reversible
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Warranty

5 Year

Related Products

  • SD-PHL-SFL-626

    PDQ - SD115 SFL Storeroom Lever Lock, Small Format Interchangeable Core Prep

    Multiple Finishes
    Starting at: $70.38
    Usage: Medium Duty
  • PDQ-SD-Series-Locks

    PDQ - SD148 Classroom Lever Lock

    Multiple Finishes
    Starting at: $70.38
    Usage: Medium Duty
  • SD126-PHL-626

    PDQ - SD126 Passage Lever Set

    Multiple Finishes
    Starting at: $62.22
    Usage: Medium Duty
  • TRUDOOR-CL2-SFIC

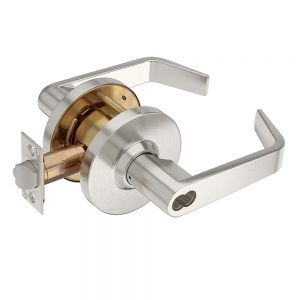

    Trudoor - CL2-84-SFIC Classroom Lever Lock, Small Format Interchangeable Core Prep
