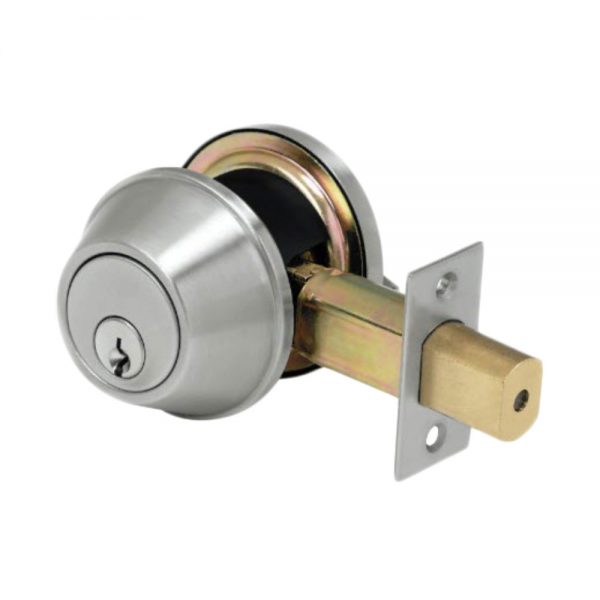

PDQ KM116 Single Cylinder Deadbolt

Name: KM116 Single Cylinder Deadbolt
Brand: PDQ
SKU: 282141
Availability: InStock

Usually Ships: 2-3 Business Days

Available Options:

Finish

Clear

Quantity:

PDQ KM116 Single Cylinder Deadbolt, Adjustable 2-3/8″ to 2-3/4″ Backset, Grade-2

Designed specifically for heavy-duty applications and high-traffic areas.

ANSI Function E1151: Lock or unlock by key from outside, by thumb turn from inside

UL 10C listed 3-hour fire door, rated as auxiliary locks for A-label single doors up to 4’ x 8’
UL 10B listed for neutral pressure doors
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 standards for Accessible and Usable Buildings

Brand	PDQ
Finishes	622 Matte Black, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome
Deadbolt Type	Single Cylinder
ANSI Function	E1151
ANSI Grade	Meets & exceeds ANSI – A156.2, Grade 2 standards
Usage	Medium Duty
Cylinder & Keys	5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
Bolt	1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset	2-3/8" to 2-3/4" Adjustable
Strike	1-1/8” x 2-3/4“ square corner
Fire Rating	UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Door Thickness	1-3/4"
