PDQ-6300R

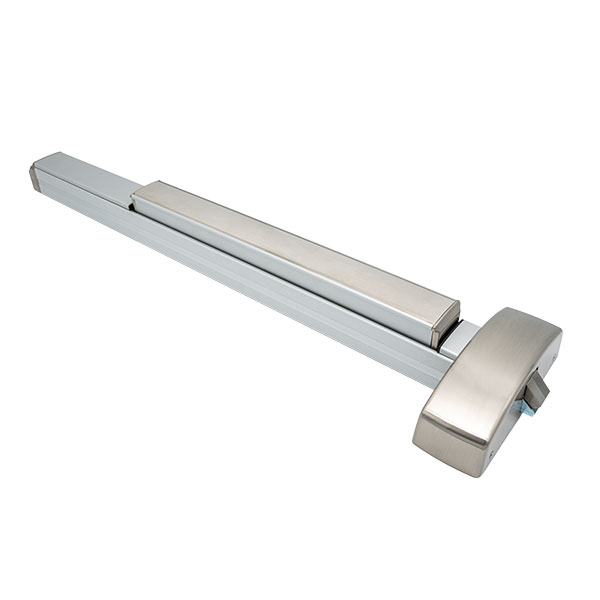

PDQ 6300R Rim Exit Device

Usually Ships: 3-5 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Non-handed for easy installation
  • Exit only (trim sold separately)

Available Options:
Clear

Product Overview

PDQ 6300R Series Heavy-Duty Grade-1 Rim Exit Device

6300R/RF – Wide Stile Rim exit device with 3/4” pullman latch. Use for wide stile single door applications or for double door applications with a mullion.

  • Exit Only (PDQ Exit Device Trim Sold Separately)
  • Cast chassis support for increased strength
  • Cush spring quiets in both directions
  • Compression spring for touch bar return
  • Heavy-duty flush end cap for pry resistance
  • Roller strike comes standard

Certifications

  • UL 305
  • UL 10C and CAN/ULC-S104 listed 3-hour fire door, for single doors up to 4’ x 10’, double doors with mullion up to 8′ x 8′ (single egress pair)
  • Certified to ANSI/BHMA A156.3 Grade 1
  • FL #40297 +60/-65 psf 4080 16ga Single
  • FL #40297 +50/-50 psf 4080 18ga Single
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • Meets requirements of the BAA as a COTS product manufactured in the United States
Brand

Finishes

622 Matte Black, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel
ANSI/BHMA Standard

Certified to ANSI/BHMA A156.3 Grade 1
Usage

Heavy Duty
Stile Type

Wide (Standard)
Minimum Stile Width

3-1/2"
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Strike

Roller Strike
Trim

None – Exit Only (Outside Trim Sold Separately)
Handing

Completely Reversible
Warranty

10 Year Limited
Buy American Act Compliance

Meets BAA – Buy American Act
