Norton-7500-689

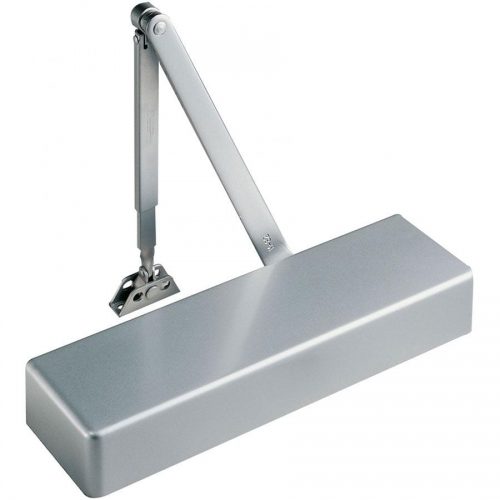

Norton 7500SS Corrosion-Resistant Door Closer

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI A156.4, Grade 1 certified
  • Adjustable spring size 1-6
  • Corrosion-resistant

Available Options:
Clear

Product Overview

Norton 7500SS Grade 1 Corrosion-Resistant Door Closer, Size 1 to 6, Plastic Cover

The series 7500SS door closers with molded plastic cover are available for use where corrosive conditions exist. This series is provided with brass adjustment valves, a 440 grade stainless steel pinion shaft, an all-aluminum body and bronze closer arm bushings; all other components are of 302/303 grade stainless steel. Fasteners are 8-18 stainless steel. This product is available for standard regular arm, top jamb and parallel arm, non-hold open, applications only.

  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • Stacked valves

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001 facility
Brand

Finishes

689 Aluminum
Model

7500SS: Regular or Top Jamb Mount, P7500SS: Parallel Arm Mount
Templating (Hole Pattern)

2-3/8" x 6-3/4"
Usage

Heavy Duty
Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
Body Construction

Cast Aluminum Body
Spring Size

Adjustable Spring Size 1-6
ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours
Cover

Full Cover
Handing

Non-Handed
Door Application

Hollow Metal or Wood
Warranty

30 Years
Norton 7500 Series Door Closer, Tri-Style (Regular, Parallel, Top Jamb) Installation Instructions
