NGP (National Guard) SS305 Heavy Duty Concealed Stainless Steel Continuous Hinge, Wrap Edge Guard

Usually Ships: 3-5 Business Days

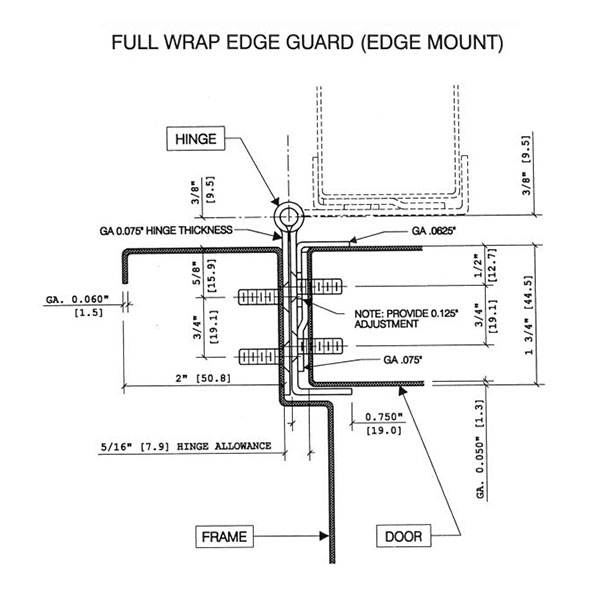

  • Full wrap edge guard, for 13/4” doors
  • UL listed, fire-rated up to 3 hours
  • Supports weights up to 600lbs

Available Options:

Clear

NGP SS305 Concealed Stainless Steel Continuous Hinge, Wrap Edge Guard, for 1-3/4″ Doors

Stainless steel continuous hinges run the full height of the door evenly distributing the weight of the door along the full height of the frame. Ideal for high-frequency and heavy-weight doors in new construction and retrofit applications.

  • Heavy-duty 14 gauge type 304 stainless steel
  • Pin and barrel design
  • Stainless steel hinge pins
  • Medical type self-lubricating flanged bearings between each 2″ knuckle provide dust-free quiet and smooth operation
  • For doors weighing up to 600 lbs.
  • 25-year warranty
  • #1/4-20 x 3/4″ TEK screws for metal doors and frames
  • US32D (630) brushed finish
  • Standard lengths: 83″, 85″, *95″
  • Note: For Door Sizing Refer to Installation Instructions

*Oversize handling fee applies (added at checkout)

Brand

Length

83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)

Material

14 gauge type 304 stainless steel

ANSI/BHMA Standard

ANSI/BHMA Certified to A156.26 American National Standard for Continuous Hinges: Grade 1 – 150 lb. Door, Grade 1 – 600 lb. Door

Fire Rating

Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0 x 10".

Continuous Hinge Type

Full Mortise (Concealed)

Usage

Heavy Duty

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
