Product Overview

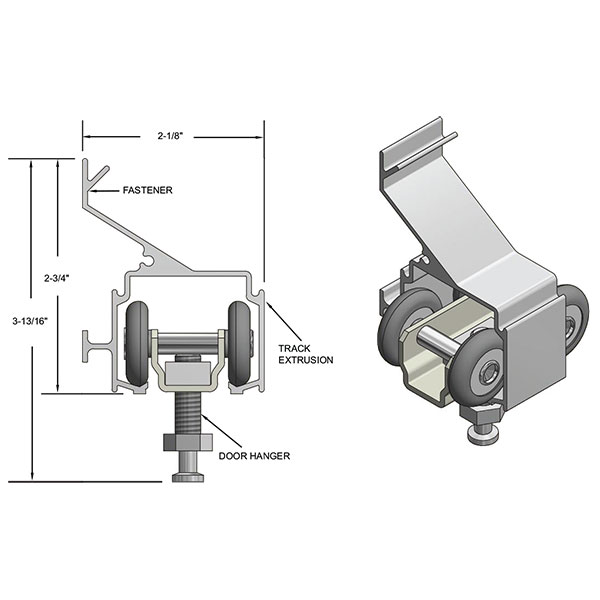

Aluminum Sliding Door Hardware — Side Wall Mount
- Commercial Grade for 1-3/8″ To 1-3/4″ Doors
- Max Weight Load 250 lbs.
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles
- Hangers with Heavy Duty Ball Bearing Wheels
- 3/8″ Clearance Between Wall and Door on 1-3/4″ Thick Doors
- 5-Year Warranty
- Track comes in 48″, 60″, 72″ and , 96″ Lengths
- Note: For Door Sizing Refer to Installation Instruction
Complete Kits Include:
(1) Track – Mill Finish
(1) Universal Hardware Packs, Each Consist Of:
- (2) Ball Bearing Heavy Duty Hangers
- (2) Snap-In Door Brackets
- (2) In-Track Stops
- (1) Angle Stop
- (1) Bumper Stop
- (1) Door Guide, Heavy Duty Floor Guide
Options (sold separately)
- Soft Close / Open – Specify “SC” For Both Directions Order (2) SC
- Wall Mounted Guide SL-WG
- Bottom Channel Guide SL-BCG
- Snap-on Fascias – Clear Anodized – SL-RD, SL-SQ18
- Includes End Caps
| Brand | |
|---|---|
| Track Length | 48", 60", 72", 96" |
| Door Weight | up to 250 lbs. |
| ANSI/BHMA Standard | ANSI/BHMA A156.14 Grade 1 Certified |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
