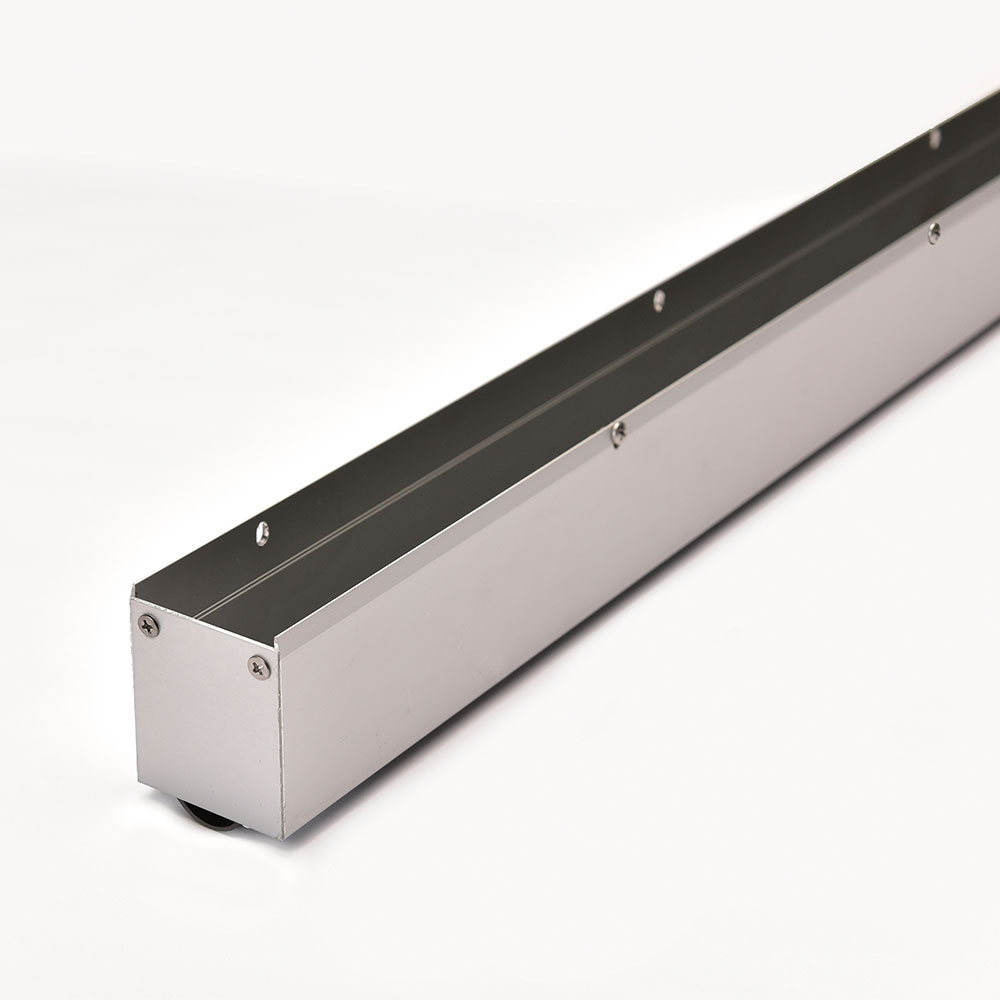

NGP (National Guard) 9245V Intumescent Door Shoe with Vinyl Seal

Usually Ships: 5-10 Business Days

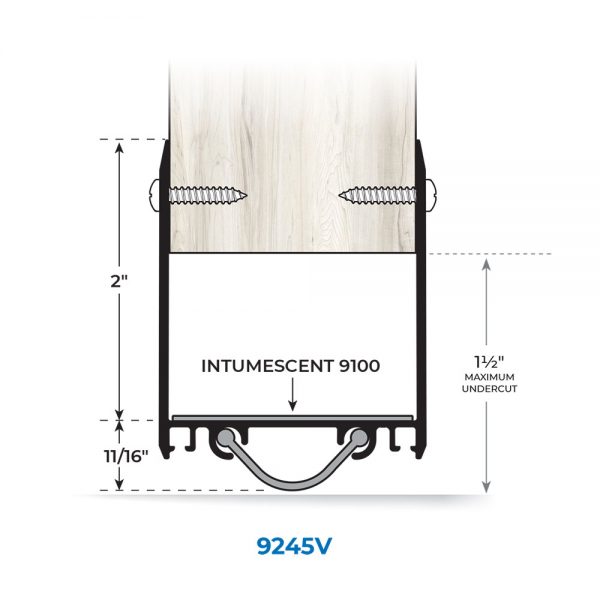

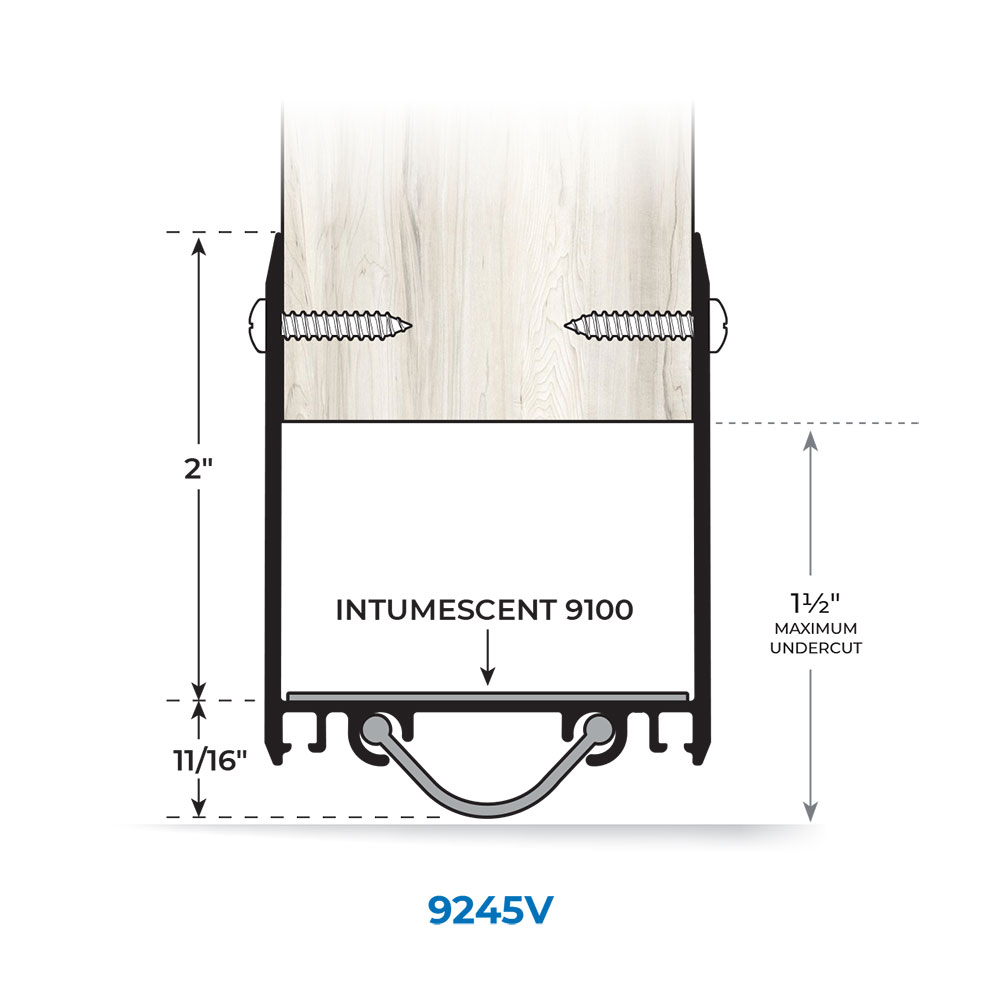

  • Suitable for use on gaps up to 1-1/2”
  • UL certified, up to 45-minute rated
  • Helps bring fire doors back into compliance

Available Options:

NGP 9245V Fire Door Bottom Excessive Gap Solution, Intumescent Door Shoe with Vinyl Seal — Up To 45 Minutes

Gap Solution for Excessive Fire Door Bottom Undercut/Clearance up to 45 Minutes NGP-Edge® Intumescent Door Shoe

  • Aluminum Alloy 6063, T5 Temper
  • Aluminum End Caps
  • Thermoplastic Polymer: Polyvinyl Chloride (PVC) Formulated with an Environmentally Friendly Bio-Based Plasticizer
  • Moisture Resistant
  • Restricts the Passage of Smoke
  • Flame Resistant
  • Temperature Range 0°F to 140°F
  • Oxidative Degradation From Age and Exposure to Cold, Heat and UV Causes Hardening, Loss of Memory and Resilience, Cracking, Crazing and Discoloration
  • UL Certified for Door Bottom Gaps — Measuring up to 1-1/2″
  • Up to 45-Minute Rated — for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
  • Certified for Use in US and Canada
  • Available in 36″, 48″ Lengths (Can be Cut Down in Field)
  • Non-Handed
  • Screw Holes Slotted for Adjustment
  • #6 x 3/4″ Stainless Steel SMS Furnished
  • Vinyl is Black

Finishes

  • 9245VA Anodized Aluminum
  • 9245VDKB Dark Bronze/Black Anodized
Brand

Finish

Anodized Aluminum, Dark Bronze

Length

36", 42", 48"

Fire Rating

UL Certified, up to 45-Minutes
