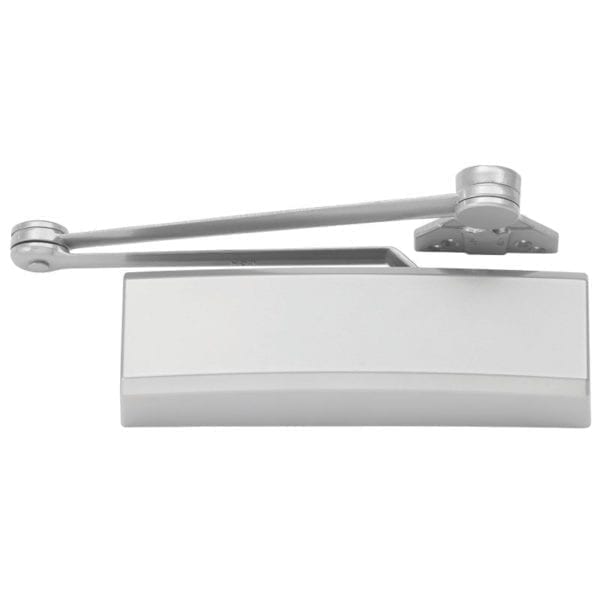

LCN 4050A EDA Door Closer with Extra Heavy Duty Parallel Arm

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA A156.4 Grade 1 Certified
  • Features Extra Heavy Duty Arm for potentially abusive installations
  • Non-Handed – Parallel Arm (PUSH SIDE) Mount

Available Options:

Clear

Product Overview

LCN 4050A EDA Grade-1 Door Closer with Extra Duty Arm

The 4050 Series cast aluminum closer is engineered for durability and built tough to excel in the harsh environments of high frequency, highly abusive traffic areas. It is ideal for commercial building applications and competitive specification situations that demand a combination of quality, reliability and value.

This cast aluminum door closer offers premium features like powder coating, a full complement bearing, All Weather Fluid and a 25 year warranty.

  • Cast aluminum bodyƒ
  • Includes extra duty arm
  • All-weather fluid
  • UL 10Cƒ Fire-Rated
  • Meets BAA – Buy American Act

Brand

Finishes

689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated)

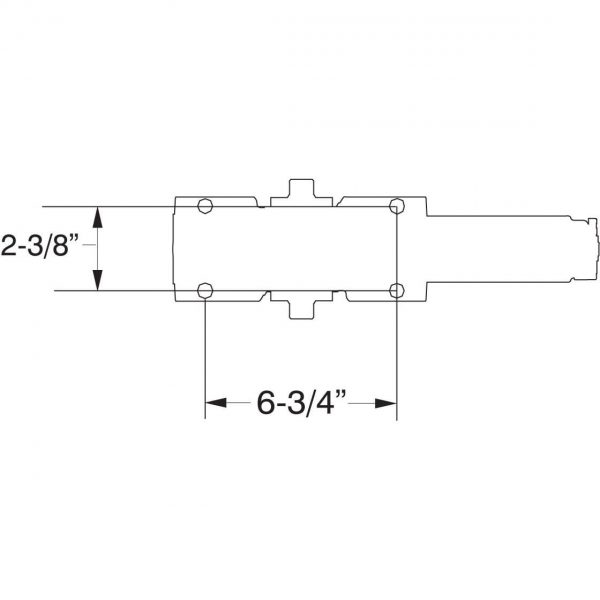

Templating (Hole Pattern)

2-3/8" x 6-3/4"
Certifications

Tested and certified under ANSI Standard A156.4 – Grade-1
Body Construction

Cast Aluminum Body
Spring Size

Adjustable Spring Size 1-6
Fluid

All Weather Fluid
Handing

Non-Handed
Cover

Full Cover
Fire Rating

UL and cUL Listed – up to 3 Hours (Non-Rated with Hold Open Arms)
Door Applications

Hollow Metal or Wood
Mounting Options

Parallel Arm (Push Side)
Warranty

25 Years
Usage

Heavy Duty
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
