LCN 4040XP-CUSH Door Closer with CUSH-N-STOP Heavy Duty Parallel Arm

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade 1 certified, Made in USA
  • Includes Cush-N-Stop® arm
  • Non-handed, parallel arm (push side) mount

Available Options:

Clear

Product Overview

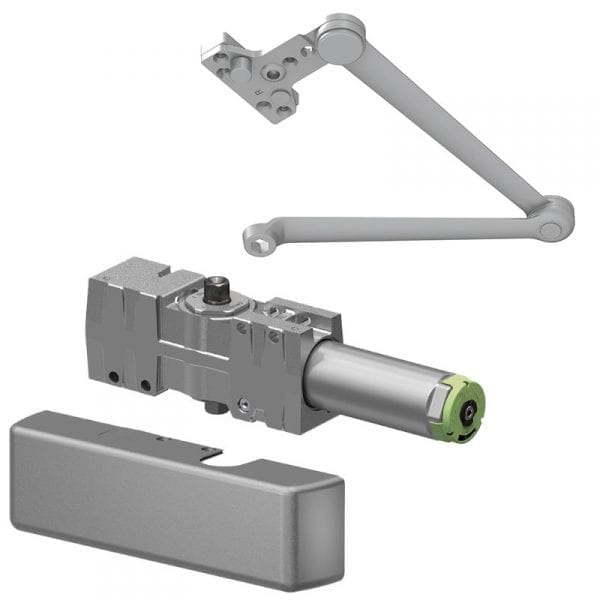

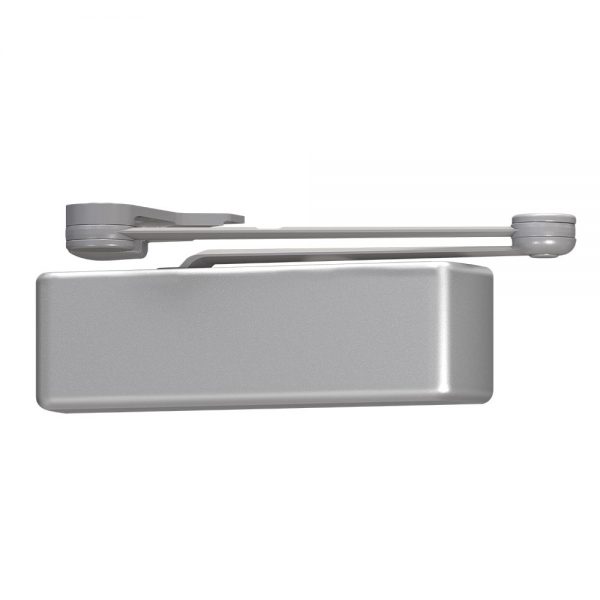

LCN 4040XP CUSH Grade-1 Door Closer, CUSH-N-STOP Arm, Full Cover

Generally regarded as the world’s top heavy-duty door closer and often duplicated, the 4040XP is LCN’s most durable and flexible heavy-duty closer designed for institutional, industrial, commercial, and other demanding high traffic applications. High-traffic doors call for heavy-duty closers – closers that won’t let you down no matter how many people go through the door or how hard they kick, push or slam against it. And when it comes to heavy-duty closers, no other closer performs like the LCN 4040XP.

  • Includes 4040XP-3077CNS Cush-N-Stop® Arm
  • Features solid forged steel main arm and forearm with stop in soffit shoe
  • Designed for commercial, industrial, and institutional applications
  • Adjustable Spring Size 1-6, includes Patented Green Dial
  • For interior doors to 5’0″ wide and exterior doors to 4’0″ wide
  • Peel-n-Stick templates – 2-1/4″ x 5″ Mounting Hole Pattern

Brand

Finishes

689 Aluminum, 691 Light Bronze, 693 Black, 695 Dark Bronze, 696 Brass
Templating (Hole Pattern)

2-1/4" x 5"
Usage

Heavy Duty
Mounting Options

Parallel Arm (Push Side)
Body Construction

Cast Iron Body
Spring Size

Adjustable Spring Size 1-6
Fluid

All Weather Liquid X Fluid
Door Application

Hollow Metal or Wood
Handing

Non-Handed
Certifications

Tested and certified under ANSI Standard A156.4 – Grade-1
Fire Rating

UL and cUL Listed – up to 3 Hours (Non-Rated with Hold Open Arms)
Cover

Full Cover
Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
