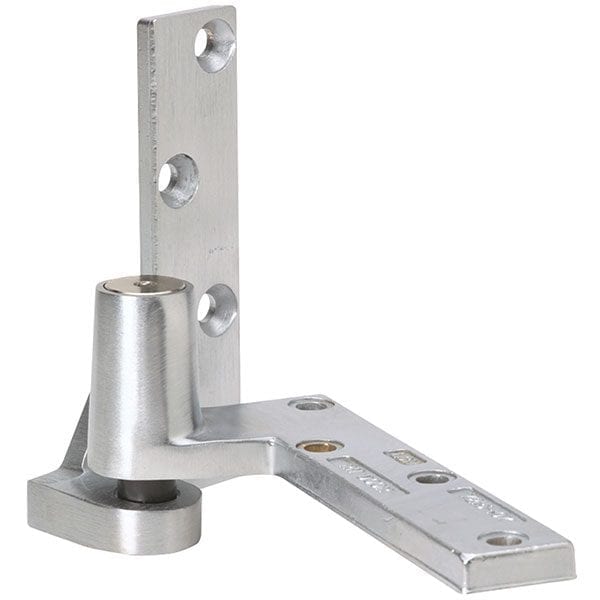

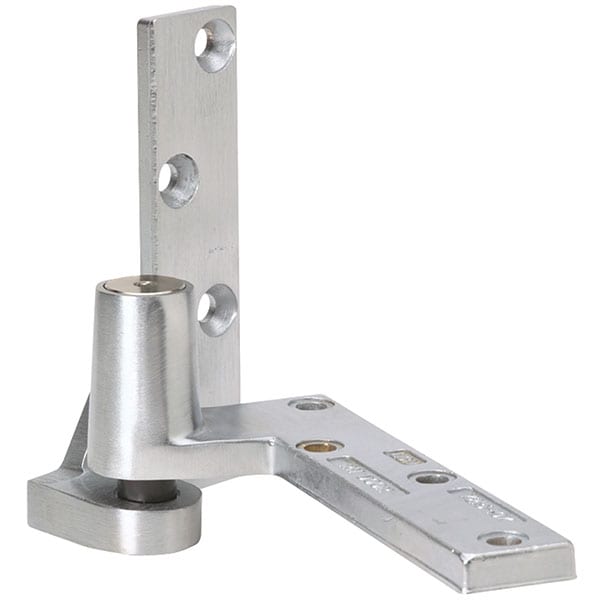

Ives 7215 Jamb Mount 3/4″ Offset Pivot Set

Usually Ships: 1-2 Business Days
  • For Doors up to 500 lbs.
  • Includes top and bottom pivot
  • UL Listed, 20 minute fire doors

Available Options:

Clear

Product Overview

  • Maximum door load 500 pounds
  • Recommended for use with 1-3/4″ minimum door thickness, with 1/8″ bevel in 2″
  • Vertical adjustment range 3/16″, with positive locking
  • Handed LH or RH
  • Made from cast brass

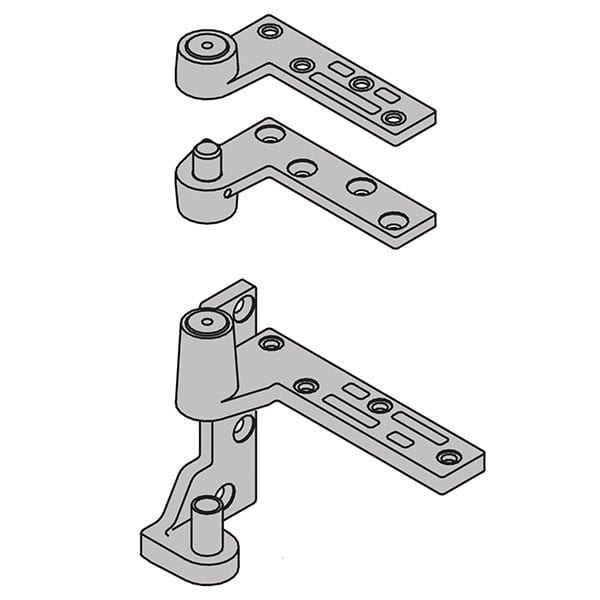

  • 7215 Set (7215 Top and 7215 Btm)
  • Top, header mount
  • Bottom, jamb mount
Brand

Door Weight

up to 500 lbs.
Hand

LH (Left Hand), RH (Right Hand)
ANSI/BHMA Standard

Meets ANSI/BHMA A156.4 C07131
Fire Rating

UL Listed, 20 minute fire doors
Usage

Standard Duty
Pivot Type

Offset Pivots
Finishes

626 Satin Chrome
