5BB1-3.5x3.5-HINGE-US26D-652

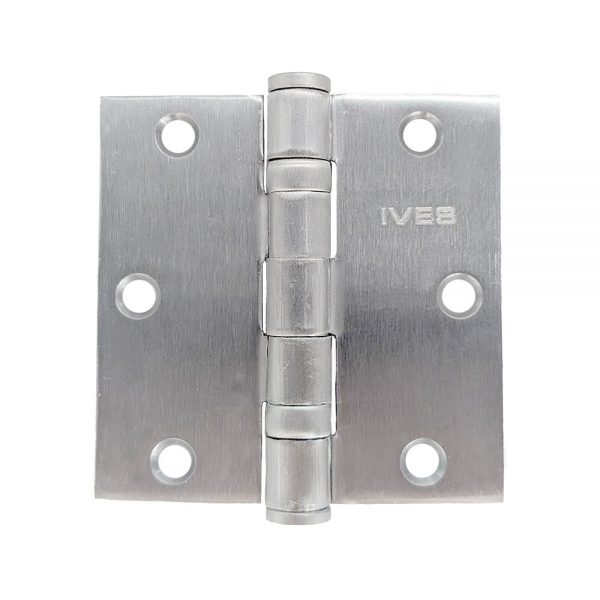

Ives 5BB1 – 3.5″ x 3.5″ Ball Bearing Hinge

Usually Ships: 1-2 Business Days
  • Meets Industry Standards ANSI/BHMA A156.1
  • .123 Standard Weight – Ball Bearing
  • Five Knuckle, Template Hole Pattern

Available Options:

Product Overview

Ives 5BB1 – 3-1/2″ x 3-1/2″ Steel Full Mortise Five Knuckle Ball Bearing Hinge, Square Corner

With tested durability and consistent superior performance, Ives architectural hinges get the job done.

  • Typically used with bifold doors or lightweight doors
  • Recommended for medium-weight doors (<150 lbs)
  • Recommended for medium frequency usage (<400 cycles per day)
  • Made with two ball bearing assemblies
  • Packed with fasteners for hollow metal and wood doors
Brand

Finishes

640 Oil Rubbed Bronze, 652 Satin Chrome, 695 Dark Bronze (Powder Coated), F-BLK Flat Black
Hinge Type

Full Mortise
Size

3.5" x 3.5"
Bearings

Ball Bearing
Knuckles

Five
Gauge

0.123
Material

1040 steel or 304 series stainless steel
Usage

Medium Duty
ANSI/BHMA Standard

Certified to ANSI/BHMA A156.1 for performance standards, Meets ANSI/BHMA 156.7 for template hinge dimensions
