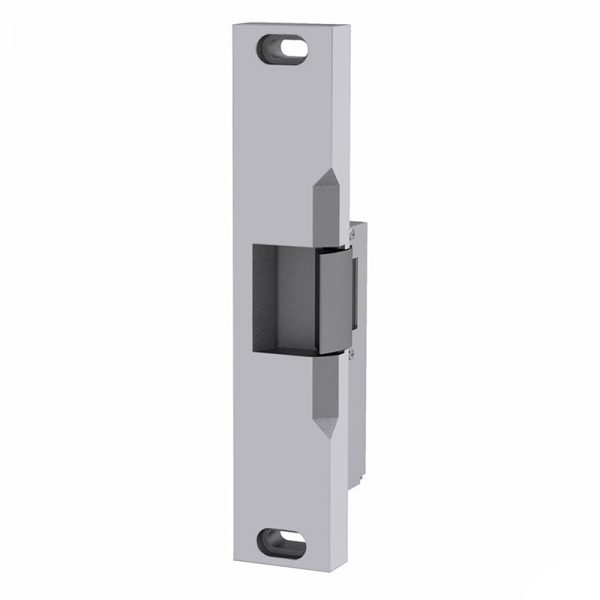

HES Folger Adam 310-4 Heavy Duty Fire-Rated Electric Strike for Rim Exit Devices

Usually Ships: 2-3 Business Days
  • For use with 3/4″ Pullman-style latchbolts on single doors
  • Designed for extreme heavy-duty applications
  • Constructed entirely of stainless steel

Available Options:

Clear

HES Folger Adam 310-4 Heavy-Duty Electric Strike for Rim Exit Devices with Pullman Style Latchbolts up to 3/4″, Satin Stainless Steel

The 310-4 is a 3-hour fire rated, industrial grade electric strike designed for extreme heavy duty applications.

The 310-4 is a 3 hour fire-rated, industrial electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes. The 310-4 has a unique 3/4″ face plate with an integrated 1/4″ base shim that can be removed in the field to accommodate rim exit devices with a 1/2″ or 3/4″ throw latchbolt.

  • PK keeper standard; For use with 3/4″ pullman style latchbolts on single doors
  • 630 satin stainless steel finish
  • Integrated shim for quick customization of faceplate thickness (1/2″ to 3/4″)
  • Tamper-resistant, heavy-duty construction
  • Constructed entirely of stainless steel for strength and corrosion resistance
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance rating 1,000,000 cycles
  • Integrated ramps for better deadlatch handling
  • Set screws for horizontal lockdown
  • In-frame horizontal adjustability
  • Wider faceplate (1-3/4″) for greater versatility
  • Non-handed
  • Fail secure (Standard)
  • Plug-in connector

Optional Features

  • LCBMA – Latchbolt & Locking Cam Monitor with Auxiliary Switch

Certifications / Listings

  • UL 10C, 3-hour fire rated (fail secure only)
  • CAN4-S104 (ULC-S104) fire door conformant
  • UL 1034, burglary-resistant listed
  • UL 294 listed
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • RoHS compliant

Models: 310-4-12D-630, 310-4-24D-630, 310-4-F-12D-630, 310-4-F-24D-630, 310-4-12D-630-LCBMA, 310-4-24D-630-LCBMA, 310-4-F-12D-630-LCBMA, 310-4-F-24D-630-LCBMA

Brand

Finishes

630 Satin Stainless Steel

Fail Secure / Fail Safe

Fail Secure (standard), -F Fail Safe

Voltage

12VDC, 24VDC

ANSI/BHMA Standard

ANSI/BHMA A156.31, Grade 1

Usage

Heavy Duty

Fire Rating

UL 10C, 3-hour fire rated (fail secure only)

Part Type

Complete Electric Strike

Lock Type Compatibility

Rim Exit Device

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
