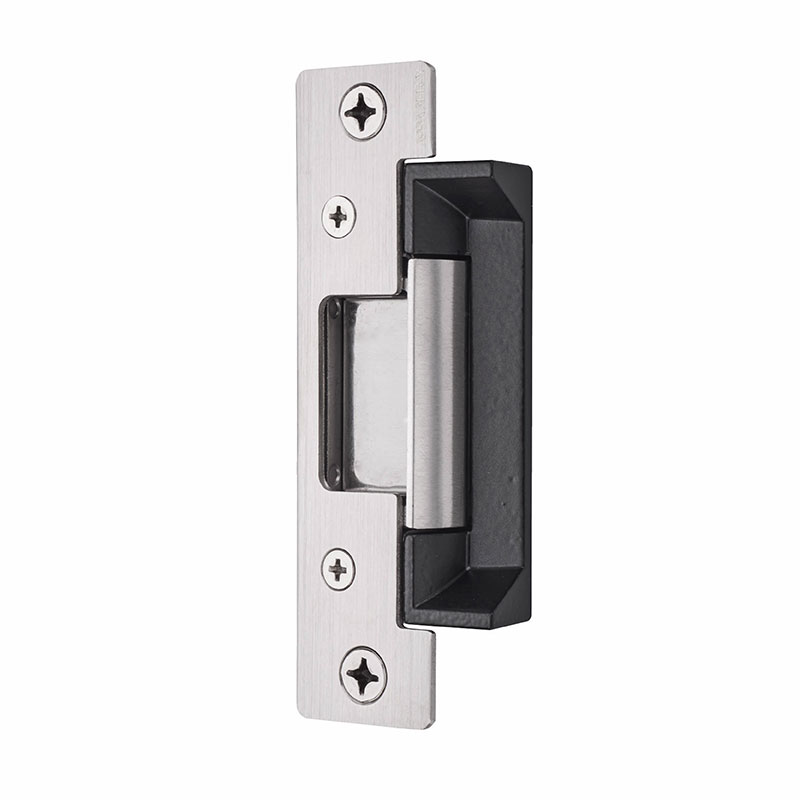

HES 5300C Complete Pac Fire-Rated Electric Strike for Cylindrical Locks

Usually Ships: 2-3 Business Days
  • For use with cylindrical locksets, up to 5/8″ latchbolt
  • Installs in metal or wood frames

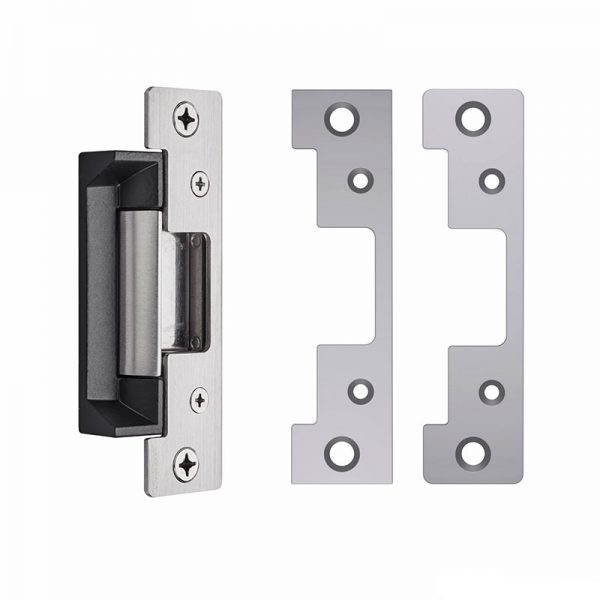

  • Includes the 501 and 501A faceplates

Available Options:

Clear

HES 5300C-630 Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Fire-Rated, Satin Stainless Steel

Works with cylindrical locksets up to a 5/8″ throw latchbolt

The 5300 Series Electric Strike is a fire-rated compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5300 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8″ throw.

  • Includes the 501 and 501A faceplates
  • 630 satin stainless steel finish
  • Tamper-resistant
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs.
  • Endurance 1,000,000 cycles
  • Field selectable fail secure/ fail safe
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2″ – 5/8″ latchbolt (5/8″ with 1/8″ door gap)

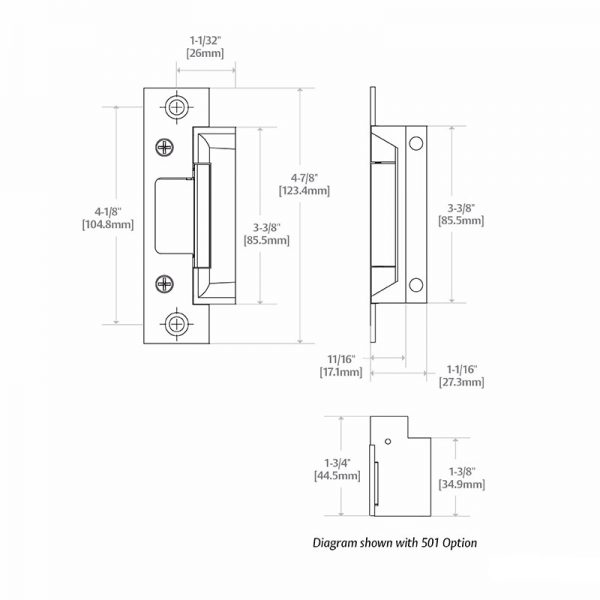

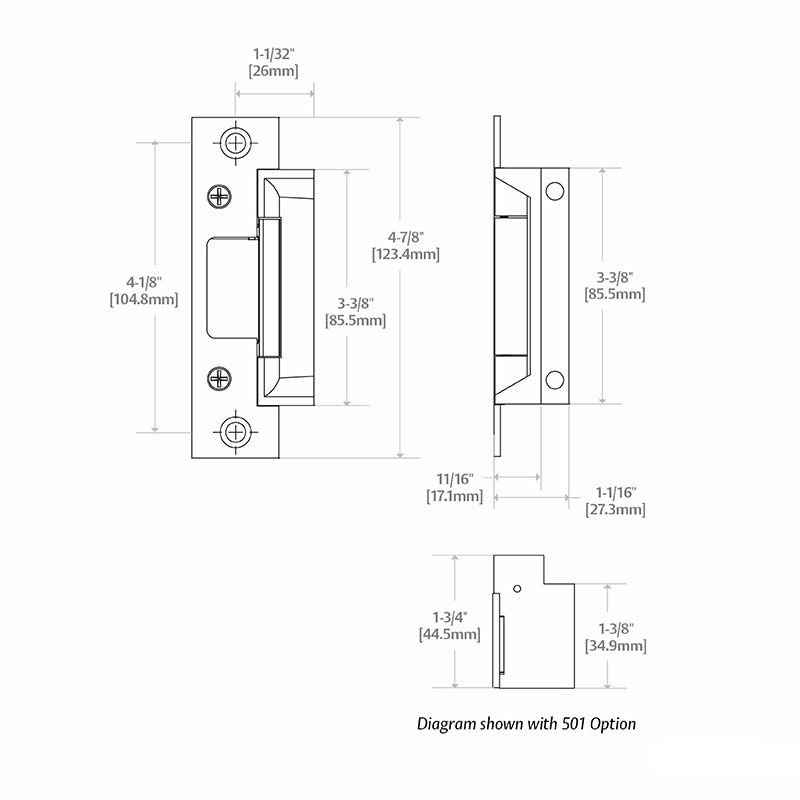

  • Strike body depth 1-1/16″
  • Plug-in connector
  • Trim enhancer included
  • Dual voltage 12 or 24 VDC/VAC

Optional Features

  • LBM – Latchbolt monitor (detects when latchbolt is in a locked state)

Certifications / Listings

  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • RoHS compliant
  • UL 10C fire rated, 3-hour single door (fail secure only)
  • CAN/ULC-S104 fire door conformant
  • NFPA-252 fire door compliant
  • ASTM-E152 fire door compliant
Brand

Finishes

630 Satin Stainless Steel

ANSI/BHMA Standard

ANSI/BHMA A156.31, Grade 1

Usage

Standard Duty

Fire Rating

UL 10C fire rated, 3-hour single door (fail secure only)

Voltage

12/24 VDC

Lock Type Compatibility

Cylindrical Lock

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
