HES 1006CLB Complete Electric Strike for Latchbolt Locks

Usually Ships: 2-3 Business Days
  • One Box Solution for all cylindrical and mortise locksets
  • Installs in metal or wood frames
  • Fire-rated, windstorm, and outdoor rated

Available Options:

Clear

HES 1006CLB Electric Strike Complete Pac, 12/24VDC, J, KD, and KM Faceplates, 630 Satin Stainless Steel

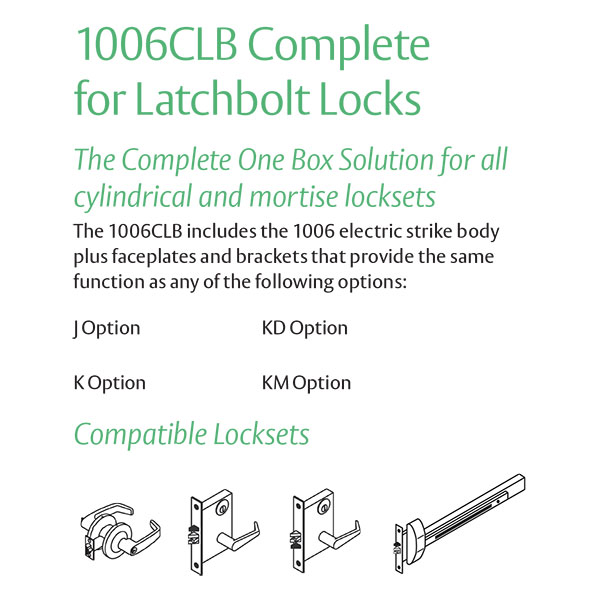

The Complete One Box Solution for all cylindrical and mortise locksets

The 1006CLB includes the 1006 electric strike body plus faceplates and brackets that provide the same function as any of the following options: J Option, K Option, KD Option, KM Option

  • 630 satin stainless steel finish
  • Fail secure (standard) or Fail Safe
  • Dual voltage 12 or 24VDC continuous duty
  • Includes 1006 strike body, J, KD, and KM faceplates
  • Non-handed

Optional Feature

  • LBM – Latchbolt monitor (detects when latchbolt is in a locked state)

Tested for Durability

  • Endurance 1,000,000 cycles
  • UL 10C fire-rated, 3 hour single door (fail secure only)
  • UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
  • CAN4-S104(ULC-S104) fire door conformant
  • ANSI A250.13-2003 windstorm listed
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • Florida Building Code approved

Brand

Finishes

630 Satin Stainless Steel

ANSI/BHMA Standard

ANSI/BHMA A156.31, Grade 1

Usage

Heavy Duty

Fire Rating

UL 10C, 3 hour fire-rated

Voltage

Dual voltage 12 or 24 VAC/VDC

HES 1006 Installation Instructions
