Hager Roton 780-210HD – Heavy Duty Full Surface Continuous Gear Hinge

Usually Ships: 2-3 Days
  • Only 1/32″ clearance required on hinge side
  • Includes Dril-Kwik® Screws and sex bolts
  • Clear Anodized Aluminum Finish

Available Options:

Clear

The Original – Hager Companies has been manufacturing the original Continuous Geared Aluminum Hinges for over 25 years. The unique design of Roton® consists of three important parts: an internal rolling contact gear profile, a high-strength cover channel, and solid bearings made of celanex. Working together, these parts evenly distribute door weight and maintain door alignment for superior performance.

  • Heavy-duty for high-frequency doors or heavy, medium frequency doors
  • Can be used with any door and frame material
  • Security molding
  • 1/32” (1 mm) inset

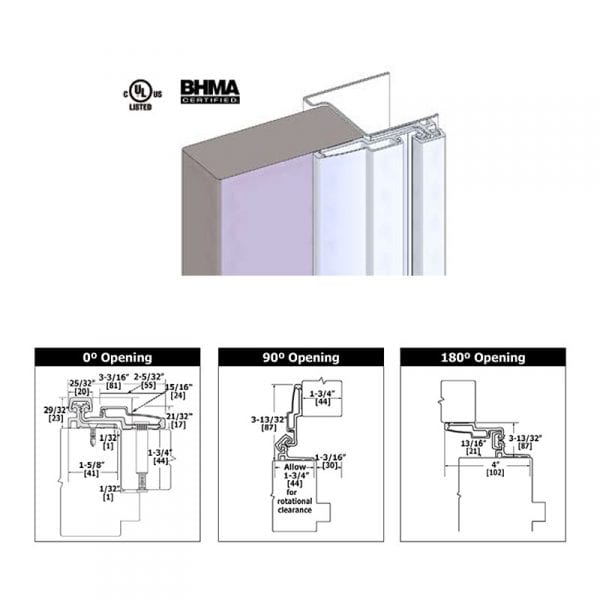

  • 1/32” minimum recommended for hinge side plus standard lockside clearance. 1-5/8” minimum frame face required plus 3/16” rotational clearance
  • 780 Series Roton® continuous geared hinges meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Available in three lengths: 79″ (for 6’8″ doors), 83″ (for 7’0″ doors) and 95″ (for 8’0″ doors)

Field Modifications
While Roton® hinges can be cut in the field, any product modifications may void all warranties. Should in the field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes. When cutting electric hinges it is extremely important to clamp both hinge leaves securely to prevent hinge “chatter” which can damage the hinge’s internal wiring. Consult Hager Technical Service before proceeding.

Brand

Finishes

Clear Anodized Aluminum, Black Anodized Aluminum, Dark Bronze Anodized Aluminum

Length

79" (for 6'8" door), 83" (for 7'0" door), 95" (for 8'0" door)

Continuous Hinge Type

Full Surface

Usage

Heavy Duty

Material

Aluminum 6063-T6

Fasteners

Dril-Kwik ® screws and sex bolts

Door Applications

1-3/4″ Thick Doors

Warranty

Limited Lifetime Warranty
