Hager 5200 Door Closer x Extra Heavy Duty Hold Open Stop Arm (HDHOS)

Usually Ships: 3-5 Business Days
  • BHMA/ANSI Certified Grade-1
  • Includes 5906 extra heavy duty hold open stop arm
  • Parallel arm installations only

Available Options:

Clear

Hager 5200 Series Door Closer x 5906 Extra Heavy Duty Hold Open Stop Arm (HDHOS), Size 1-6 Adjustable

5200 Series Closers are engineered and designed to offer the ideal combination of appearance and reliability. The 5200 Series Closers are constructed of aluminum alloy to be installed on exterior and interior doors. They are designed and engineered for reliability and superior performance.

  • Includes 5906 extra heavy duty hold open stop arm (HDHOS)
  • Parallel arm mount only
  • Standard, separate and independent, latch, sweep and backcheck valves
  • Ideal for schools, hospitals, and other high-use environments
  • Ideal choice for doors with a maximum weight of 250 lbs
  • To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball-bearing hinges with this product
Brand

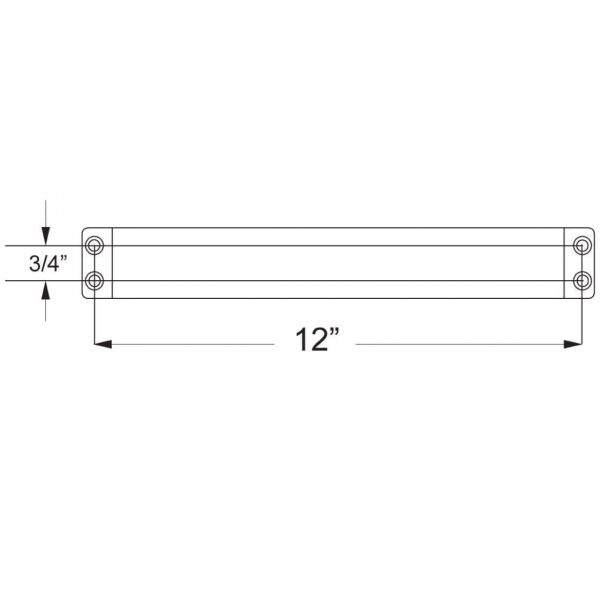

Templating (Hole Pattern)

3/4" x 12"

Finishes

ALM Sprayed Aluminum

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Fire Rating

Non-Rated with Hold Open Arm

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

Full Cover

Mounting Options

Parallel Arm (Push Side)

Door Applications

Hollow Metal, Wood or Aluminum

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Usage

Medium Duty

Warranty

Limited Lifetime Warranty
