Hager 3570 ARC Classroom Lever Lock

Usually Ships: 3-5 Business Days
  • BHMA/ANSI A156.2 Grade 2
  • ANSI Function F84 – Classroom
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

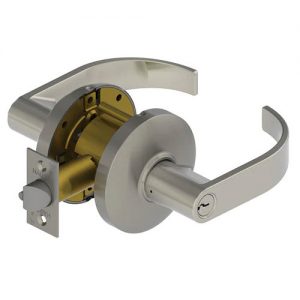

Hager 3570 Classroom Lever Lock, ARC Archer Lever Design

Hager 3500 Series Grade 2 lock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. It is an economical alternative to Grade 1 when Grade 1 is not required.

Hager 3570 Classroom Function (ANSI F84) – Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latchbolt is operated by inside lever.

  • Standard door prep – 2-1/8″ diameter (cross bore), latch hole – 1″ diameter (edge bore)
  • No exposed mounting screws

codes

Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Classroom

Lever Design

ARC (Archer)

ANSI Grade

Meets BHMA ANSI A156.2, Series 4000, Grade 2

Usage

Medium Duty

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Handing

Non-Handed

Fire Rating

UL/cUL listed up to 3 Hours

Door Thickness

1-3/8" to 1-3/4"

Warranty

Limited Lifetime Warranty
