Falcon MA641 QG Dormitory Mortise Lock, Quantum Lever, Gala Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 Certified
  • Dormitory Function
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Falcon MA641 QG Dormitory Mortise Lock, Quantum Lever, Gala Rose

The MA Series is a heavy-duty, Grade 1 mortise lock that offers versatility, toughness, and dependability at an affordable price.

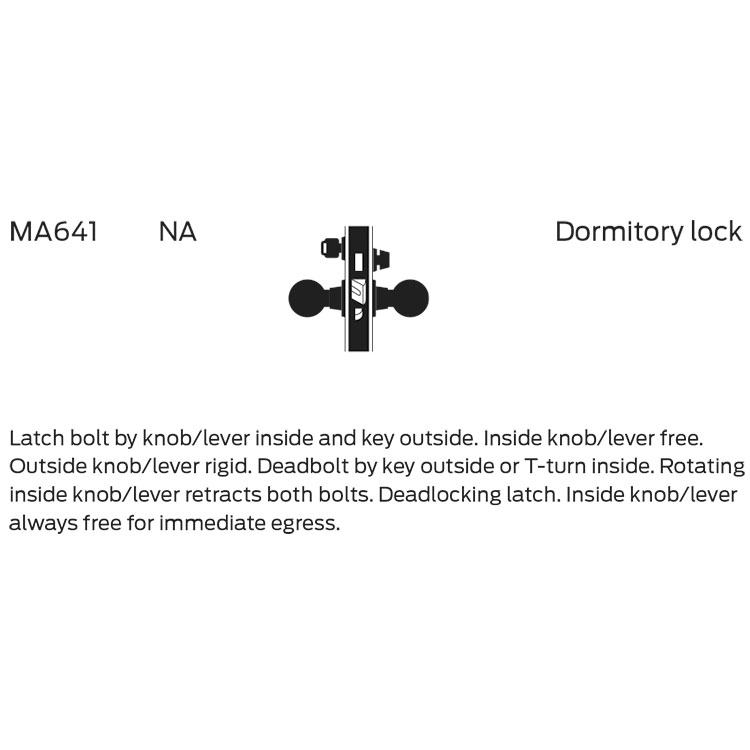

Dormitory Lock: Latch bolt by knob/lever inside and key outside. Inside knob/lever free. Outside knob/lever rigid. Deadbolt by key outside or T-turn inside. Rotating inside knob/lever retracts both bolts. Deadlocking latch. Inside knob/lever always free for immediate egress.

  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance
  • Ability to easily re-hand the lock in the field
  • Conventional cylinder or (SFIC) small format interchangeable core housing (less core)

Models: MA641P-QG-605, MA641CP6-QG-605, MA641B-QG-605, MA641L-QG-605, MA641P-QG-606, MA641CP6-QG-606, MA641B-QG-606, MA641L-QG-606, MA641P-QG-613, MA641CP6-QG-613, MA641B-QG-613, MA641L-QG-613, MA641P-QG-622, MA641CP6-QG-622, MA641B-QG-622, MA641L-QG-622, MA641P-QG-626, MA641CP6-QG-626, MA641B-QG-626, MA641L-QG-626, MA641P-QG-630, MA641CP6-QG-630, MA641B-QG-630, MA641L-QG-630

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome, 630 Satin Stainless Steel

Lock Function

Dormitory

Cylinder

985-6Pin Mortise Cylinder or 987 Mortise Cylinder Housing

Usage

Heavy Duty

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

Handing

Right hand is standard; Reversible in the field

Backset

2-3/4"

Case

Cold formed steel, zinc dichromate plated, .090” thick

Latchbolt

Two-piece stainless steel, mechanical anti-friction bolt. 3/4" projection

Faceplate

(armored front) 1-1/4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs

Strike

Meets ANSI AII5.1 for frame preparation. Strike is non-handed

Door Thickness

1-3/4"

Lever Design

QG Quantum Gala

Falcon_MA-Lock_Installation_Instructions Falcon_MA_Series_Service_Manual
