Dormakaba 9300 x YR23 Panic Rim Exit Device with Escutcheon Passage Lever Trim

Usually Ships: 2-3 Business Days
  • Heavy Duty – ANSI/BHMA Grade-1 Certified
  • ANSI Function 23 (passage)
  • Includes YR23 lever trim

Available Options:
Clear

Product Overview

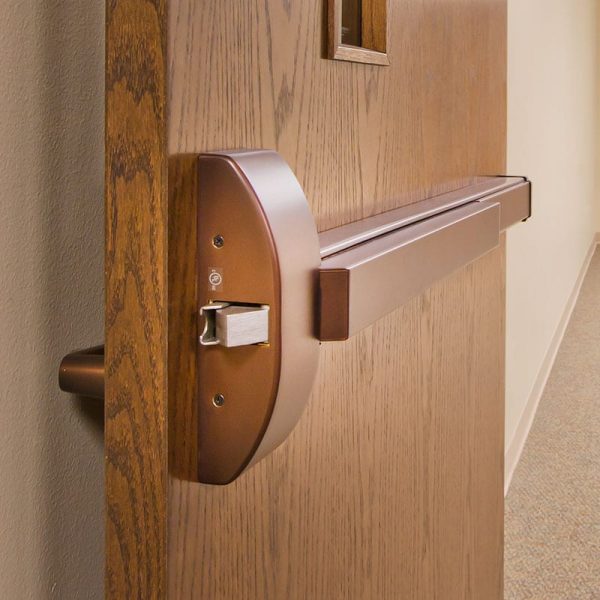

Dorma 9300/F9300 Grade 1 Rim Exit Device, Wide Stile Pushpad, YR23 Trim, Y Escutcheon, R Lever, Passage Function

The 9000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards. This premium exit device is for high impact applications such as schools, universities, and other institutional or commercial buildings.

  • ANSI Function 23 (Passage): Entrance by lever (no cylinder). Trim always active.
  • Designed for 1-3/4”- 2-1/4” thick doors
  • Complies with NFPA 101 life safety code. Fire-rated devices comply with NFPA 80 fire doors and windows.
  • F9300 – 3-Hour Fire-Rated
  • Size B = 36″, Size A = 48″

YR23 Trim

  • ANSI Function: 23 – Entrance by lever (no cylinder). Trim always active.
  • R lever design

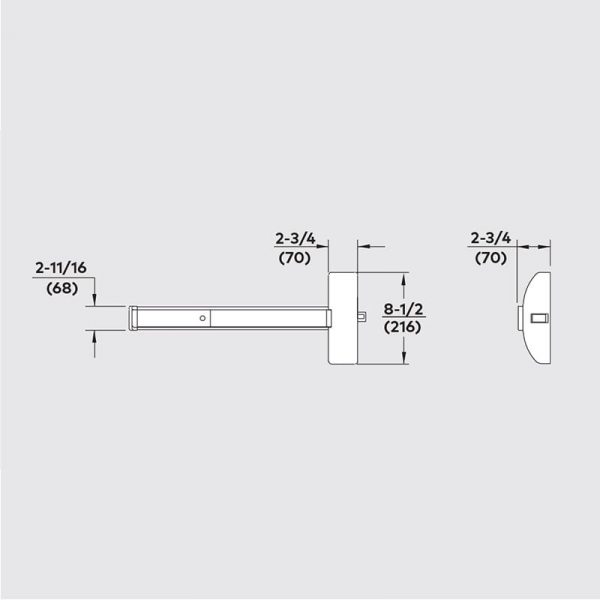

  • Base Size: 8-1/2″ x 2-3/4″
  • Projection: 3-1/2″
  • Corrosion-resistant, stainless steel offered standard
  • USA manufacturing facility certified to ISO 9000 and ISO 14001

made-in-usa

Brand

Length

Size A – 34" to 48", Size B – 28" to 36"
Fire-Rated

Non-Fire-Rated (w/ Dogging Feature), Fire-Rated (No Dogging)
Finishes

630 Satin Stainless Steel
ANSI/BHMA Standard

Certified/listed to ANSI/BHMA 156.3, Grade 1 for exit devices
Usage

Heavy Duty
Lever Design

Rectangular “R” Lever
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Latchbolt

Deadlatching, 3/4" throw
Strike

463 Standard
Stile Type

Wide (Standard)
Stile

4-1/2 " minimum
Handing

Easily Re-handed in the field – Shipped as RHR
Door Thickness

1-3/4" to 2-1/4"
Warranty

10 Years
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
