Product Overview
Doormerica DC70BF Grade-1 Door Closer, Size 1-6 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, Full Cover, Barrier Free
Doormerica offers quality hardware for commercial applications at an affordable price.
- Tri-Pack with regular, parallel, and top-jamb mounting
- Standard spring adjustment from size 1 to 6
- Non handed
- Standard with adjustable sweep, latch, and back check
- Full plastic cover
- SNB – Sex Nuts and Bolts
- Standard hole pattern and mounting location
- Limited Lifetime Warranty
Code Compliance
- ANSI A 156.4 Grade 1
- UL 1 OC and UBC 7.2 for positive pressure
- ANSI A 117.1 and ADA for barrier-free accessibility C-UBC
- California Amended Uniform Builders Code -2001
- California State Fire Marshall (CSFM) approved
- ADA compliant
| Brand | |
|---|---|
| Finishes | 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated) |

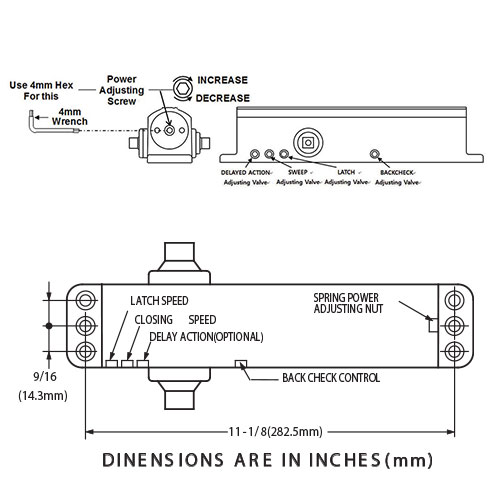

| Templating (Hole Pattern) | 9/16" x 11-1/8" |
| Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| Usage | Medium Duty |
| ANSI Grade | Meets ANSI A156.4 – Grade 1 Standards |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Body Construction | Cast Aluminum Body |
| Spring Size | Adjustable Spring Size 1-6 |
| Fire Rating | UL10C and UBC 7.2 for positive pressure |
| Handing | Non-Handed |
| Cover | Full Cover |
| Door Applications | Hollow Metal, Wood or Aluminum |
| Warranty | Limited Lifetime Warranty |
