Product Overview

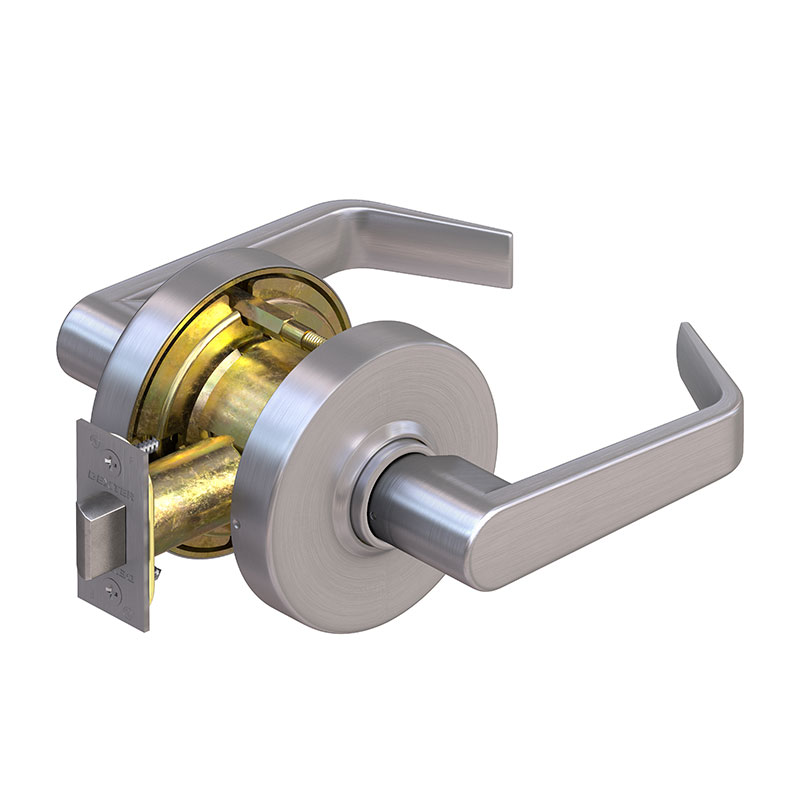

Dexter C1000-PASS Grade 1 Passage Cylindrical Lock, Regular Lever, 2-3/4″ B.S.
ANSI Function F75 – Latch bolt by levers at all times.
- Grade 1, UL listed 3-hour
- 1-3/8″ to 2″ door range standard
- All functions include 1-1/8″” x 2-1/4″ square-corner beveled latch with 2-3/4″ backset and ANSI 1-1/4″ x 4-7/8″ curved lip strike
Brand | |
---|---|
Finishes | 613 Oil Rubbed Bronze, 626 Satin Chrome |
ANSI/BHMA Standard | Meets ANSI/BHMA A156.2, Series 4000, Grade 1 |
Usage | Heavy Duty |
Lock Function | Passage |
Lever Design | C: Curved Lever, R: Regular Lever |
Backset | 2-3/4" |
Latch | 1/2" throw – 1-1/8" x 2-1/4" face |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Handing | Non-Handed |
Fire Rating | UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
