Product Overview

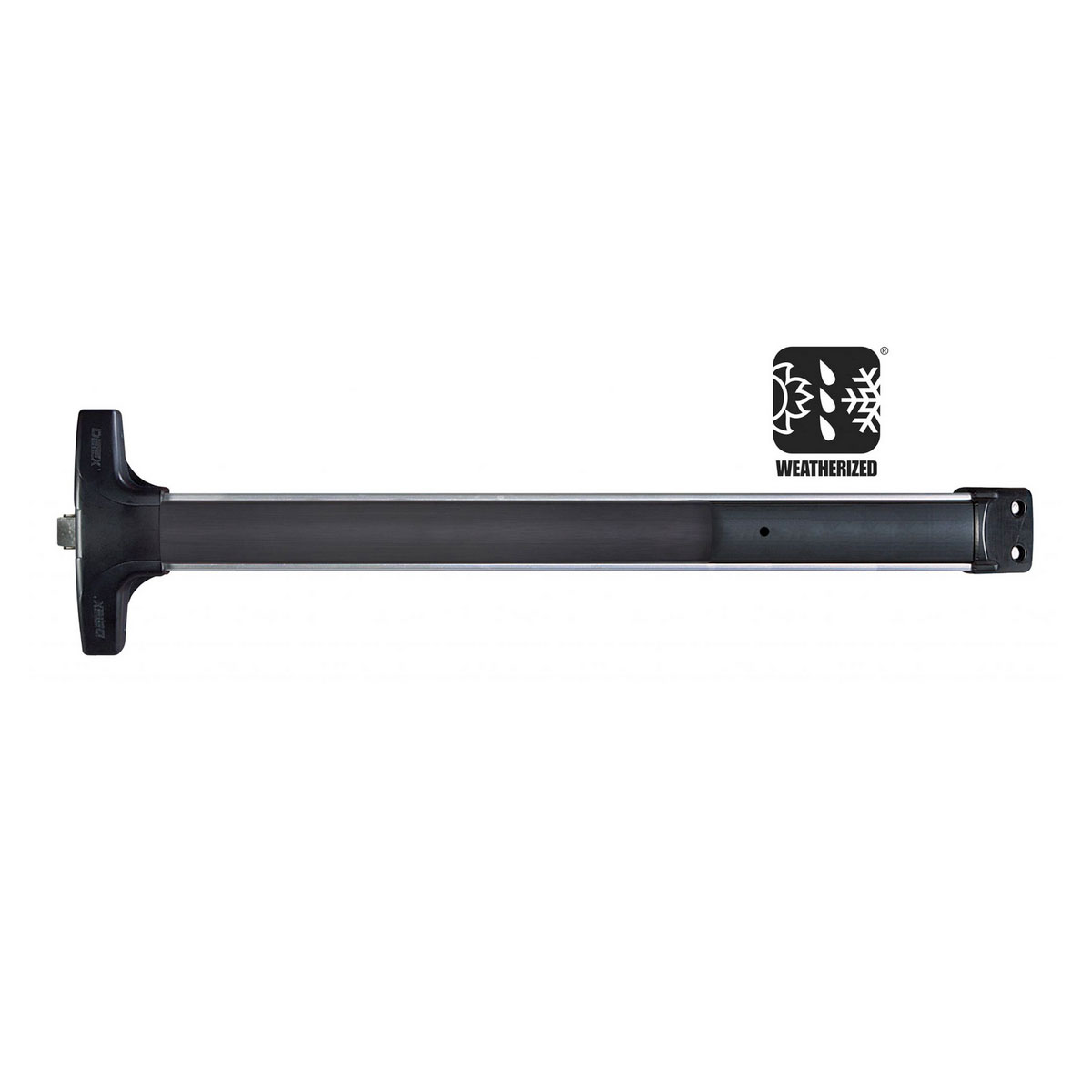

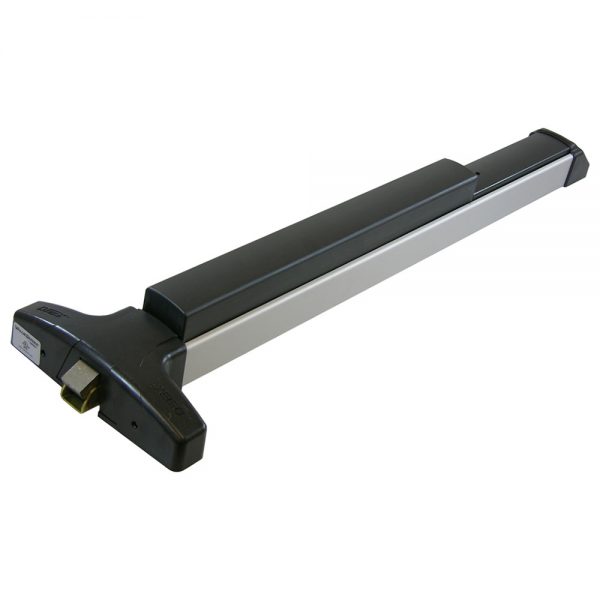

Detex V40xW Value Series Grade-1 Rim Exit Device, 99 Surface Strike, Weatherized, Hex Dogging, Exit Only
The V40xW Series wide or narrow stile rim exit device is secure and durable, Grade 1 panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors and gates with mullions that are or may be exposed to the weather. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
- Exit Only (Detex Exit Device Trim sold separately)
- Heavy-duty ribbed aluminum rail extrusion
- Fast and easy installation saves time and money
- Outside trims are easily changed or rekeyed without removing device from door
- Angled end cap deflects damage away from device
- Withstands over 1400 pounds of static pull force for greater security
| Brand | |
|---|---|
| Finishes | 628 Anodized Aluminum, 711 Black Anodized Aluminum |
| Length | 36", 48" |
| Mechanical Options | Weather Resistant |
| ANSI/BHMA Standard | ANSI/BHMA certified A156.3 |
| Usage | Medium Duty |
| Fire Rating | Non-Fire-Rated |
| Includes Trim | No |
| Dogging Feature | HD – Hex Dogging |
| Handing | Non-Handed |
| Stile Type | Wide (Standard) |
| Minimum Stile Width | 3-1/2” with 99 surface strike (Std.) for single door, 4” for pairs – 2” narrow stile doors with NSK Narrow Stile Door Kit (sold separately) |
| Door Thickness | 1-3/4" to 2-1/4" |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Warranty | 10 Years |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
