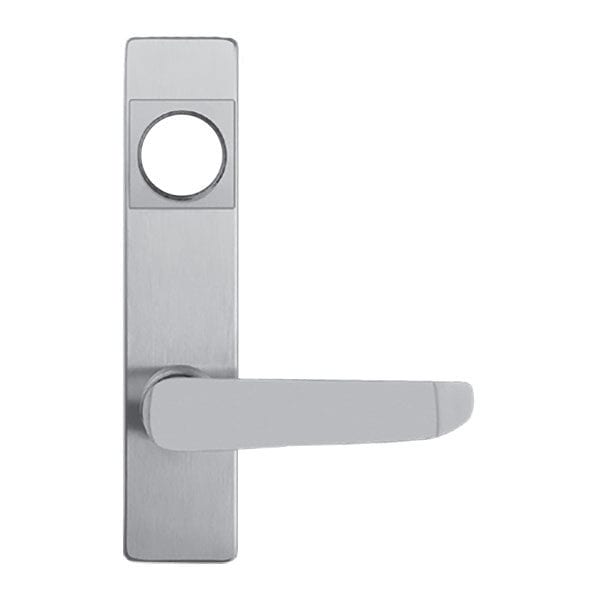

Detex 08BN Entry Lever Trim for V40/V50 Value Series Exit Device

Usually Ships: 1-2 Business Days
  • For use with V40/V50 Value Series Exit Device
  • Key Locks/Unlocks Lever
  • 1-1/4″ Mortise Cylinder Sold Separately

Available Options:

Clear

Detex 08BN BN Lever Trim with Cylinder Hole, for Value Series Devices

Built to be as durable as the panic devices, this heavy-duty trim will stand up to heavy use and abuse. The versatile design of Detex trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. This trim can be used on V40 Series Rim and V50 Series Surface Vertical Rods.

  • ANSI Function: 08 – Entrance by lever. Key locks or unlocks lever (classroom trim)
  • Escutcheon plate size: 1-29/32″ x 8-1/4″ x 15/16″
  • Includes 161 Prep cover plate: 3″ x 9-1/4″
  • S lever style furnished standard
  • Mortise cylinder must be ordered separately
Brand

Handing

Easily Re-handed in the field – Shipped as RHR

Cylinder

1-1/4" Mortise Cylinder (sold separately)

Usage

Medium Duty

Function

Entry / Classroom

ANSI Grade

ANSI Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Finishes

689 Aluminum, 693 Black
