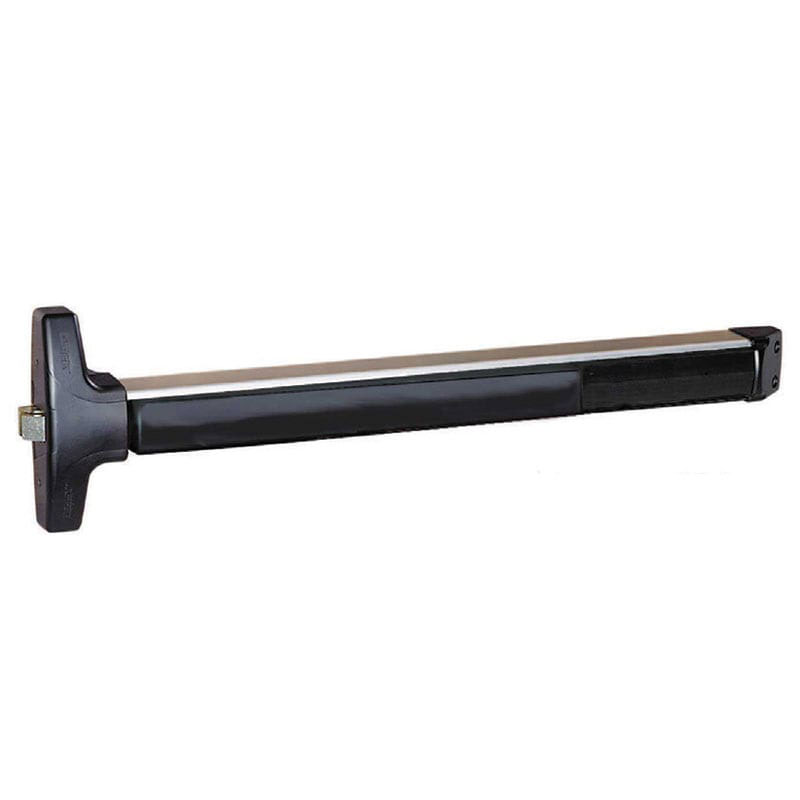

Detex FV40 Value Series Fire-Rated Rim Exit Device

Usually Ships: 1-2 Business Days
  • ANSI/BHMA A156.3 Grade 1 certified
  • UL Listed for fire exit hardware, 3-hour fire-rated
  • Exit only (trim sold separately)

Available Options:

Detex FV40 Value Series Grade-1 Rim Exit Device, 99 Surface Strike, Fire-Rated, Less Dogging, Exit Only

The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with 90 Series mullions. The patented mounting plate and strike locator system ensure the easiest and most accurate installation of panic hardware available.

  • Exit Only (Detex Exit Device Trim sold separately)
  • High-impact ABS and anodized surfaces
  • Heavy-duty ribbed aluminum rail extrusion
  • Fast and easy installation saves time and money
  • Covers a 161 door prep
  • Stainless steel, 3/4″ deadlocking Pullman-type latch bolt
  • Angled end cap deflects damage away from device
  • Withstands over 1400 pounds of static pull force for greater security

Brand

Finishes

628 Anodized Aluminum, 711 Black Anodized Aluminum

Length

36", 48"

ANSI/BHMA Standard

ANSI/BHMA certified A156.3

Usage

Medium Duty

Fire Rating

UL Listed Fire Exit Hardware for 3 hours, maximum 4’x10’ single doors and pairs of 4’x8’ with F90KR keyed removable mullion

Includes Trim

No

Dogging Feature

LD – Less Dogging

Handing

Non-Handed

Stile Type

Wide (Standard)

Minimum Stile Width

3-1/2” with 99 surface strike (Std.) for single door, 4” for pairs – 2” narrow stile doors with NSK Narrow Stile Door Kit (sold separately)

Door Thickness

1-3/4" to 2-1/4"

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Warranty

10 Years

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Detex V40 Installation Instructions
