Corbin Russwin ED5470B M55 Surface Vertical Rod Exit Device (Less Bottom Rod)

Usually Ships: 1-2 Business Days
  • Heavy Duty – ANSI/BHMA Grade 1 Certified
  • Includes heat-activated door bolt (popper)
  • 90-minute fire-rated, B label

Available Options:

Clear

Corbin Russwin ED5470B M55 1-1/2 Hour Fire-Listed Surface Vertical Rod Exit Device, Less Bottom Rod

All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field, with testing procedures that go beyond industry standards. Abuse and cycle tests prove time and again the durability of the entire ED5000 series, and backed by a 5-year warranty.

  • Exit Only (Corbin Russwin outside trim sold separately)
  • M55 = Less Bottom Rod

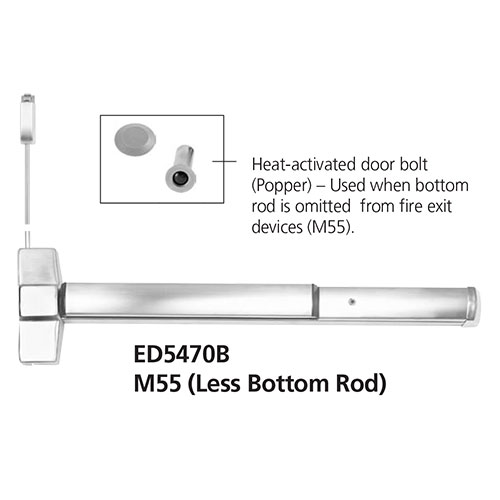

  • Includes heat-activated door bolt (Popper)
  • Designed for standard width stile applications on wood and metal doors
  • All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware

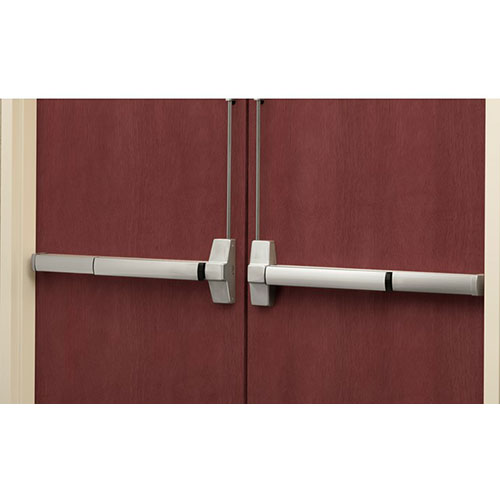

  • 1-1/2 hour fire-rated device listed as fire exit hardware for B label and lesser class 8’ x 10’ double doors
  • UL symbol on active case cover indicates listing

Applications

  • Schools
  • Hospitals
  • Office Buildings
  • Theaters

made-in-usa-codes

Brand

Finishes

630 Satin Stainless Steel

Length

36" (for 30" to 36" Doors), 48" (W048 for 36" to 48' Doors)

ANSI/BHMA Standard

Meets A156.3, Type 2, Grade 1

Usage

Heavy Duty

Fire Rating

“B” label (90 Minutes)

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Stile Type

Wide (Standard)

Latchbolt

Top: 3/4" (19mm) throw, stainless steel, pullman-type with automatic deadlatching.

Strike

Top: surface mounted interlocking

Dogging Feature

None

Handing

Handed – Field Reversible

Projections

3-1/4" active, 2-3/4" dogged

Door Height

Standard top rod for 7' door. All rods easily field cut to size. Optional door heights up to 8’

Door Applications

1-3/4" Metal and Wood Doors

Warranty

5 Year
