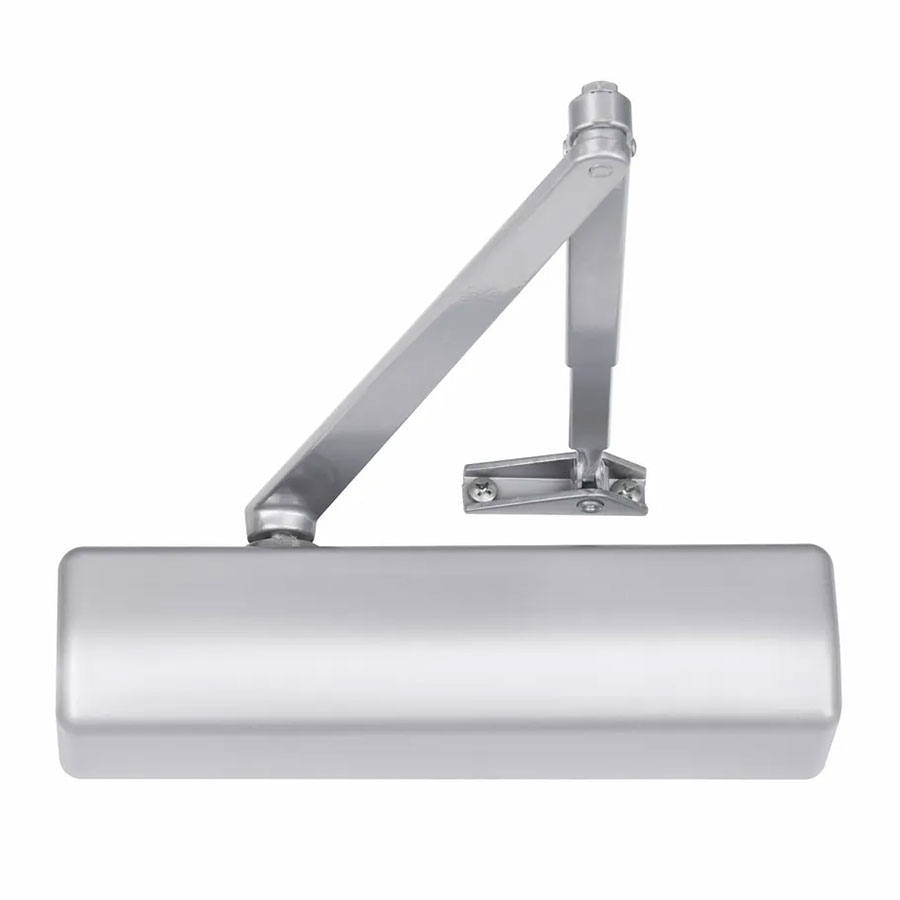

Corbin Russwin DC6210 M54 Door Closer

Usually Ships: 1-2 Business Days
  • Heavy-Duty, BHMA/ANSI Certified Grade-1
  • Adjustable spring size 1-6
  • Regular, top jamb, or parallel arm mount

Available Options:


Corbin Russwin DC6210 M54 Grade 1 Surface Door Closer, Double Lever Arm with PA Bracket, Push or Pull Side Mount, Size 1 to 6, Full Cover, Non-Handed

The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire door openings.

  • Includes bracket and arm to install closer in standard, top jamb or parallel applications
  • M54 = Includes Sex nuts and bolts (SNB)
  • Meets ADA requirements in all applications
  • Replaces discontinued 100/110/120/2800 series door closers



Heavy Duty

Templating (Hole Pattern)

1" x 4-5/16"


689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 693 Black (Powder Coated), 696 Brass (Powder Coated)

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards

Fire Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Body Construction

Cast Iron Body


Self-drilling screws, sex nuts and bolts (SNBs)


Full Cover

Spring Size

Adjustable Spring Size 1-6




25 Year Limited
