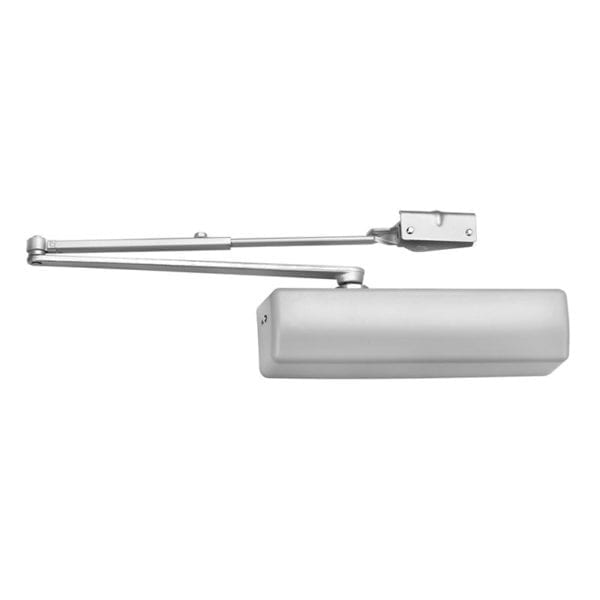

Corbin Russwin DC3210 M54 Door Closer

Usually Ships: 45-60 Business Days
  • BHMA/ANSI Certified Grade-1
  • Adjustable spring size 1-6
  • Regular, top jamb, or parallel arm mount

Available Options:


DC3210 M54, DC3000 Series Cast Iron Door Closer with Universal Arm package

The mid-priced, cost-effective choice for high-traffic situations. The DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations.

  • Includes bracket and arm to install closer in standard, top jamb, or parallel applications
  • M54 = Includes Sex nuts and bolts (SNB)
  • Meets ADA requirements in all applications
  • Replaces discontinued 100/110/120 series door closers



689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 693 Black (Powder Coated), 696 Brass (Powder Coated)


Medium Duty

Templating (Hole Pattern)

1" x 4-5/16"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards

Fire Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Body Construction

Cast Iron Body


Self-drilling screws, sex nuts and bolts (SNBs)


Full Cover

Spring Size

Adjustable Spring Size 1-6




15 Year Limited
