Product Overview
Available while supplies last (No returns allowed)

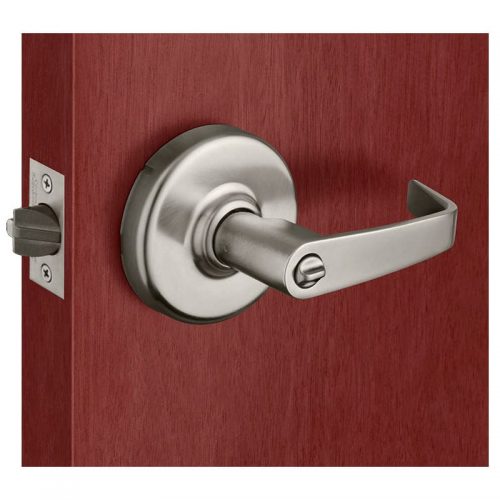

Corbin Russwin CL3351 Grade 1 Cylindrical Lock, Entry/Office Function, NZD Newport Lever
The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. The CL3300 series subtly complements any high-use commercial, industrial and institutional application.
- ANSI/BHMA Grade 1 certified
- UL-cUL listed for 3-hour fire doors and windstorm applications
- EZ-Install components significantly reduce installation time
- Independent return springs prevent lever sag
- Thru-bolted cylindrical chassis prevents rotation and ensures proper alignment
- Covers ANSI/DHI Door Prep A115.18
- Brass cylinder, 6-pin L4 keyway, 0-bitted standard
ANSI F109 Entrance or Office
- Deadlocking latchbolt by lever either side, except when turn button locks outside lever. Pushing turn button in locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. (Lever handle is freewheeling in locked position)
- Turning inside lever unlocks outside lever
- Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlock position
- Inside lever always free
Applications
- Schools & Universities
- Hospitals
- Corporate campuses
- Government/Municipal Buildings
- Commercial Buildings
Brand | |
---|---|
Finishes | 613 Oil Rubbed Bronze, 626 Satin Chrome |
Lock Function | Entry (Entrance), Office |
Lever Design | NZD (Newport) |
Usage | Heavy Duty |
ANSI/BHMA Standard | Certified ANSI A156.2 Series 4000 — Grade 1 |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
Cylinder & Keys | 6-pin conventional, 0-bitted, with 2 keys |
Keyway | Corbin Russwin L4 Keyway |
Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
Backset | 2-3/4" |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Handing | Non-Handed |
Door Thickness | 1-3/4" to 2" |
Warranty | 7 Year |
